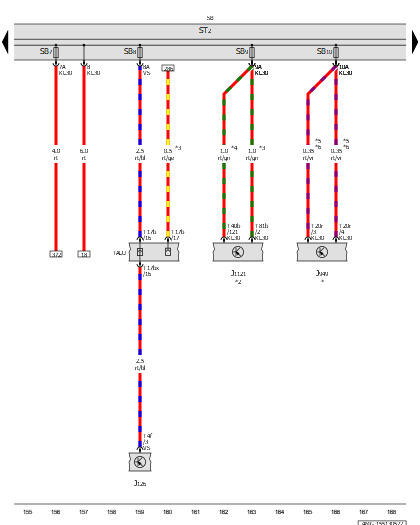

Fresh Air Blower Control Module, Control Module For Emergency Call Module And Communication Unit, Driver Assistance Systems Control Module, Fuse Panel B, Fuse Panel 2
J126
Fresh Air Blower Control Module
J949
Control Module for Emergency Call Module and Communication Unit
J1121
Driver Assistance Systems Control Module
SB
Fuse Panel B
ST2
Fuse Panel 2
SB7
Fuse 7 (On Fuse Panel B)
SB8
Fuse 8 (On Fuse Panel B)
SB9
Fuse 9 (On Fuse Panel B)
SB10
Fuse 10 (On Fuse Panel B)
T4f
4-Pin Connector, Black
T17b
17-Pin Connector, Red
T17bx
17-Pin Connector, Red
T20r
20-Pin Connector, Black
T40b
40-Pin Connector, Black
T81b
81-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
*
Refer to Applicable Emergency Call Module Wiring Diagram
*2
Refer to Applicable Wiring Diagram
*3
For Driver Assistance System
*4
For Vehicles with Cruise Control System
*5
For Vehicles with Emergency Call Module
*6
Depending on Equipment
