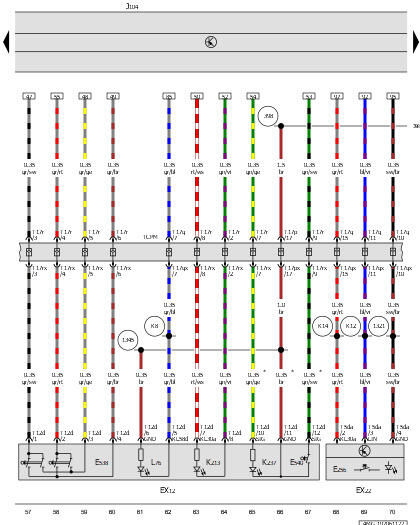

Parking Brake Button, Center Instrument Panel Switch Module, Abs Control Module
EX12
Parking Brake Button
EX22
Center Instrument Panel Switch Module
E256
ASR/ESP Button
E538
Electromechanical Parking Brake Button
E540
-Auto Hold- Button
J104
ABS Control Module
K213
Electromechanical Parking Brake Indicator Lamp
K237
-Auto Hold- Indicator Lamp
L76
Push Button Illumination Bulb
T5da
5-Pin Connector, Brown
T12d
12-Pin Connector, Black
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
T17q
17-Pin Connector, Black
T17qx
17-Pin Connector, Black
T17r
17-Pin Connector, Red
T17rx
17-Pin Connector, Red
TCPM
Coupling Point on Instrument Panel, Center
398
Ground Connection 33 (in Main Wiring Harness)
1321
Ground Connection 2 (in Center Console Wiring Harness)
1345
Ground Connection 3 (in Center Console Wiring Harness)
K8
Connection 1 (in Center Console Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
*
For Vehicles with Hill Hold
