Overview - Drivetrain

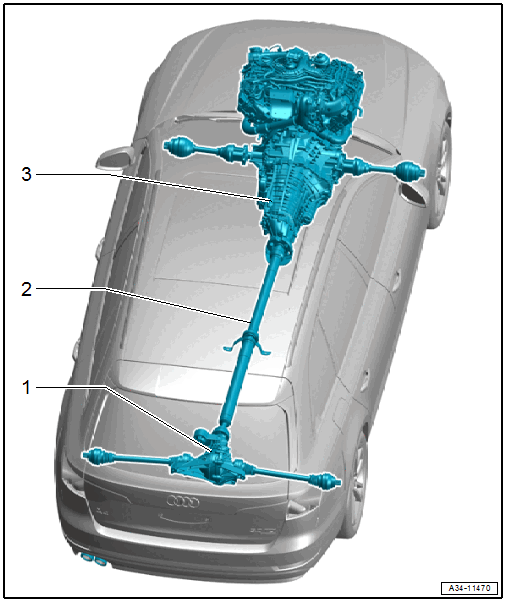

Fig 1: Drivetrain Components Location

GWWA34-11470

Courtesy of AUDI OF AMERICA, LLC

Rear Final Drive
- Removing and Installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
Driveshaft
- Removing and Installing. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
8-Speed Automatic Transmission
- Removing and installing. Refer to [For transmission(s) 0D5A] Transmission, Removing and Installing .
