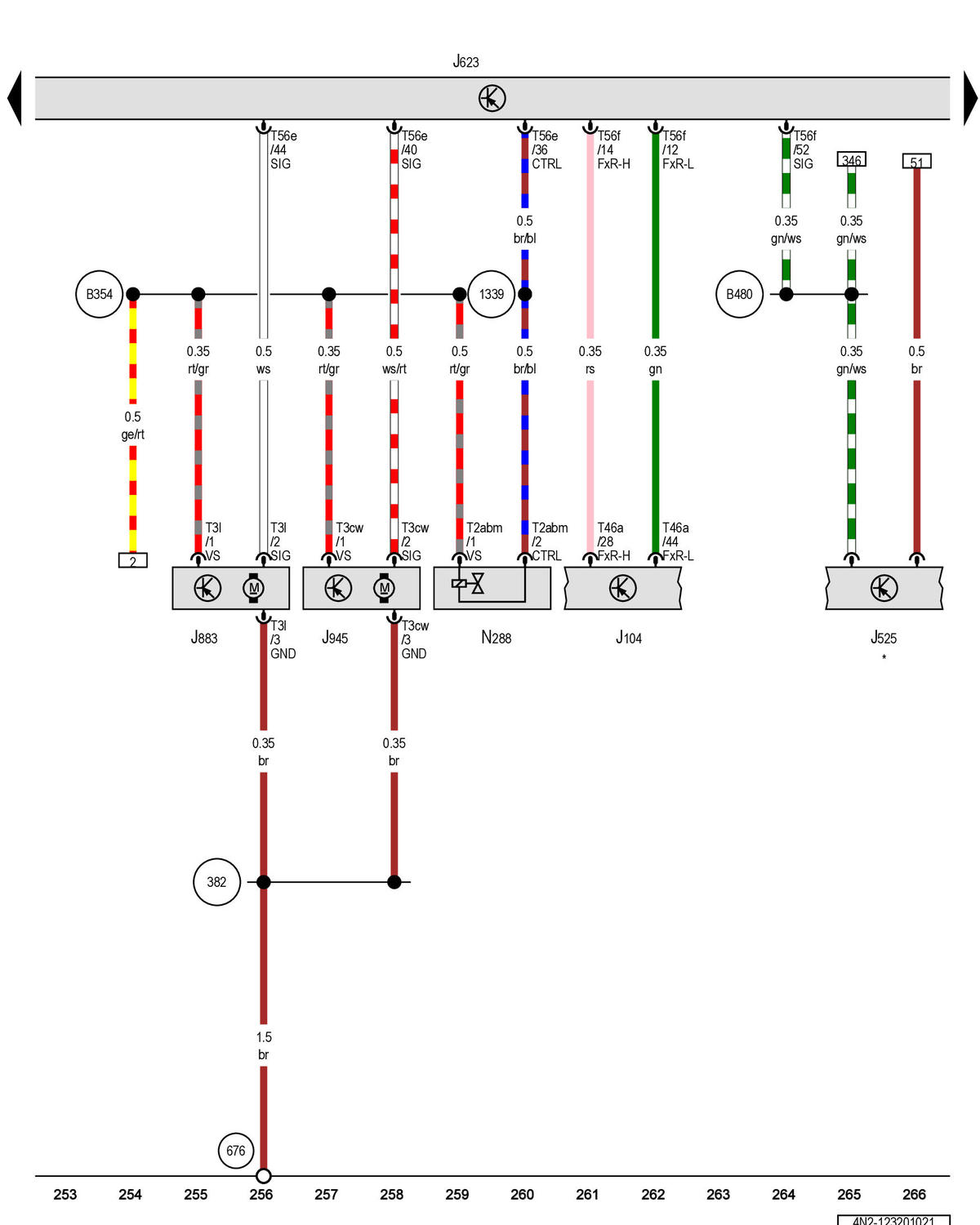

Abs Control Module, Digital Sound System Control Module, Engine/Motor Control Module, Exhaust Door Control Unit, Exhaust Door Control Unit 2, Tank Switch-Off Valve
J104
ABS Control Module
J525
Digital Sound System Control Module
J623
Engine/Motor Control Module
J883
Exhaust Door Control Unit
J945
Exhaust Door Control Unit 2
N288
Tank Switch-Off Valve
T2abm
2-Pin Connector, Gray
T3cw
3-Pin Connector, Black
T3l
3-Pin Connector, Black
T46a
46-Pin Connector, Black
T56e
56-Pin Connector, Black, Green
T56f
56-Pin Connector, Black, Black
382 Ground Connection 17 (in Main Wiring Harness)
676 Ground Connection 2 in Luggage Compartment, Left
1339 Ground Connection 41 (in Main Wiring Harness)
B354 Positive Connection 5 (87a) (in Main Wiring Harness)
B480 Connection 16 (in Main Wiring Harness)
* Refer to Applicable Sound System Wiring Diagram
