Antenna Amplifiers -R24- / -R111- / -R83- / -R84-, Removing And Installing, A6 Sedan: Notes
WARNING: This page is about a different car, the 2024 Audi A6 allroad. However, it is still accessible from the selected car via links, so may be relevant.

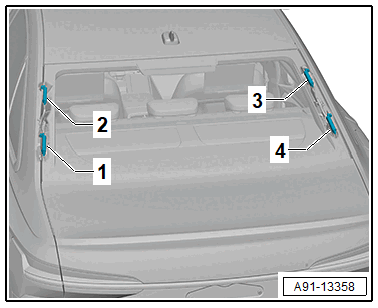

The antenna amplifier is located on the left and right D-pillars.
 Courtesy of AUDI OF AMERICA, LLC
|
- -1- TV Antenna Amplifier 3 -R84-
- -2- Antenna Amplifier 2 -R111-
- -3- Antenna Amplifier -R24-
- -4- TV Antenna Amplifier 2 -R83-
Removing and installing is identical.
