Special Tools
Special tools and workshop equipment required

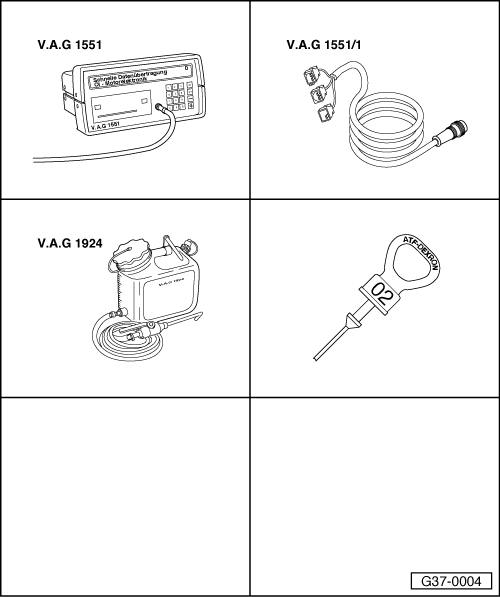

- Scan tool:VAG1551
- Test lead:VAG1551/1
- ATF filler tool:VAG1924
- Dipstick identification "02" Part No. 01F 321 431 A
Special tools and workshop equipment required

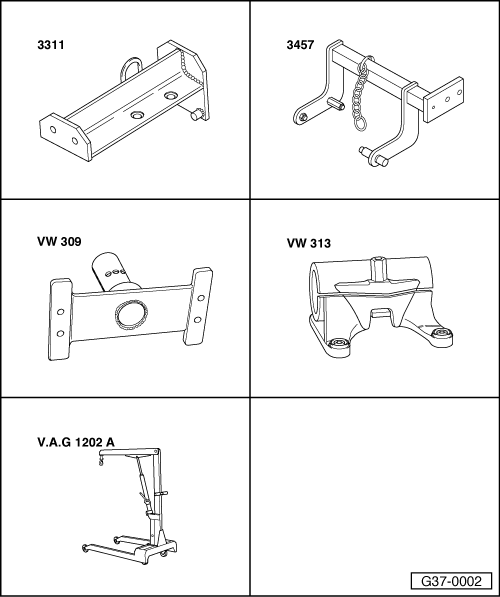

- Suspension Device:3311 for vehicles → 5/94 (with automatic seat belt tensioner)
- Attachment Aand Holding Rig:3457 For Vehicles 6/94 →
- Holding Plate:Vw309
- Holding Fixture:Vw313
- Shop Crane:Vag1202A

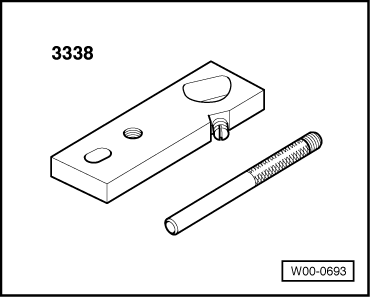

- Adjusting device:3338
Special tools and workshop equipment required

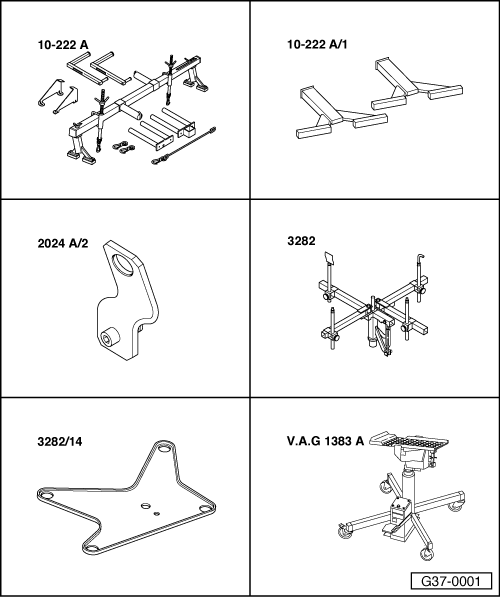

- Engine support bridge:10-222A
- Bracket for engine:10-222A1
- Bracket:2024A/2
- Transmission support:3282
- Adjustment plate:3282/14
- Engine/transmission lifter:VAG1383A
