Selector Lever Cable, Adjusting

A - Selector lever cable loosened at transmission only

-- Move selector lever into position "P."

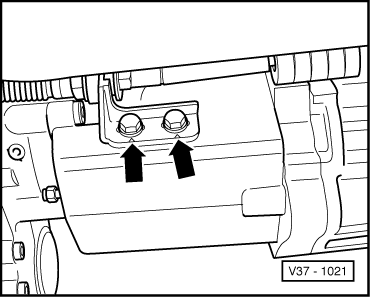

-- Loosen bolts (arrows) on bracket for selector lever cable until bracket can be moved.

Courtesy of AUDI OF AMERICA, LLC

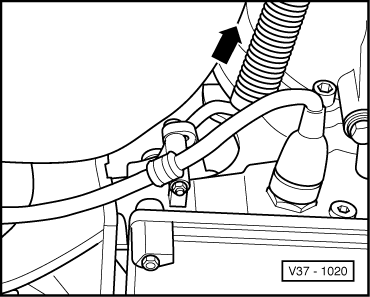

-- Move transmission selector lever into position "P" (rear stop). To do this, pull selector lever cable back (arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Check whether selector lever cable is routed free of tension.

-- Tighten bolts on bracket for selector lever cable to 25 Nm (18 ft lb).

-- Check selector lever function SELECTOR LEVER FUNCTION, CHECKING .

B - Selector lever cable loosened on selector lever only

• Center console, front, removed CENTER CONSOLE
• Footwell vent removed Removal and Installation

-- Move selector lever into position "P."

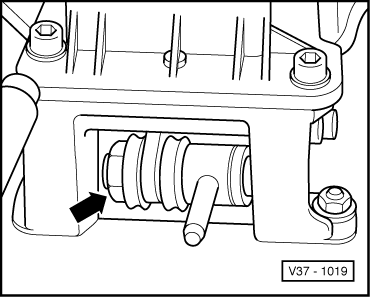

-- Loosen nut (arrow) on clamping pin for selector lever cable.

Courtesy of AUDI OF AMERICA, LLC

-- Move transmission selector lever into position "P" (rear stop). To do this, pull selector lever cable back (arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Check whether selector lever cable is routed free of tension.

-- Check whether markings on bracket for selector lever cable (arrows) are aligned to center of mounting bolts, if necessary align.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten nut (arrow) on clamping pin for selector lever cable (20 Nm or 15 ft lb).

Courtesy of AUDI OF AMERICA, LLC

-- Check selector lever function SELECTOR LEVER FUNCTION, CHECKING .
