Removal And Installation: Transceiver: Installing

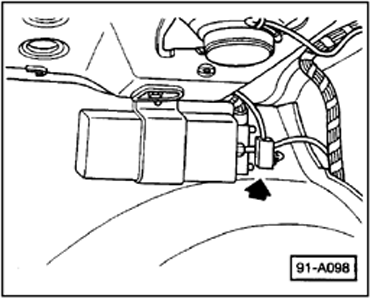

-- Attach multi-pin connector to transceiver ensuring fuse (arrow) is exposed.
-- Attach antenna cable to transceiver.
-- Place mounting bracket over transceiver.
-- Mount transceiver and bracket so that connectors face forward and transceiver connector wiring points up.
-- Install mounting bracket securing screws and tighten.
Each transceiver has its own electronic serial number (ESN). ALWAYS register new transceiver with the cellular telephone company before placing a call.
S4
Removing

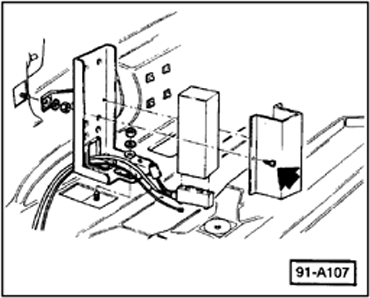

-- Remove transceiver cover screws (arrow) and remove cover.
-- Disconnect multi-pin connector and antenna cable from transceiver.
-- Remove transceiver from bracket.
Installing
Install in reverse order of removal.
Each transceiver has its own electronic serial number (ESN). ALWAYS register new transceiver with the cellular telephone company before placing a call.
