Stereo System Components: Notes

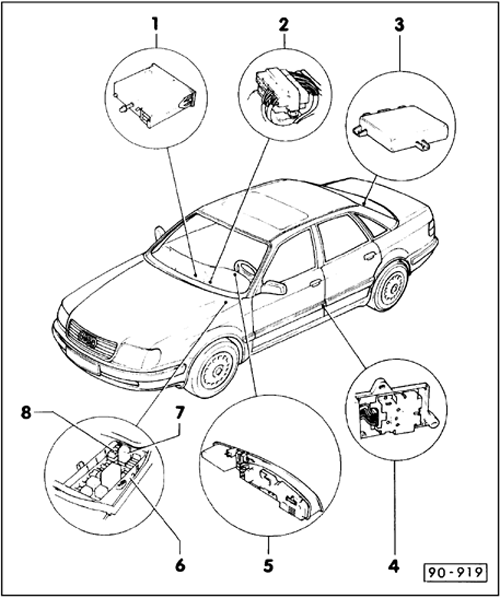

Fig 1: Exploded View Of Stereo System Components

Courtesy of AUDI OF AMERICA, LLC

Radio -R-
- Installed in center console
- Removing and installing Fig. 1 Radio, removing and installing
Connector station III
- For installation position and connector identification CONNECTOR STATION III CONNECTOR IDENTIFICATION
Bose system rear amplifier -R12-
- Audi Bose system only
- Installed in luggage compartment under rear filler panel
- Removing and installing Fig. 2 Rear amplifier, removing and installing (Bose stereo system only)
Bose system front amplifier
- Audi Bose system only
- Installed in driver and passenger doors in speaker enclosure (base reflex box)
- Replace amplifier, speaker and enclosure as an assembly only
Instrument cluster
- Removing and installing INSTRUMENT CLUSTER
- Instrument cluster connectors, terminal identification INSTRUMENT CLUSTER
Auxiliary relay panel I
- Located in plenum chamber left
Speaker power supply relay -J225-
- Audi Bose system only
- Installed in auxiliary relay panel I, for exact relay position
Radio circuit breaker -S84-
- Located in position A4 of auxiliary relay panel I
- Opens during overload and closes after cooling down
