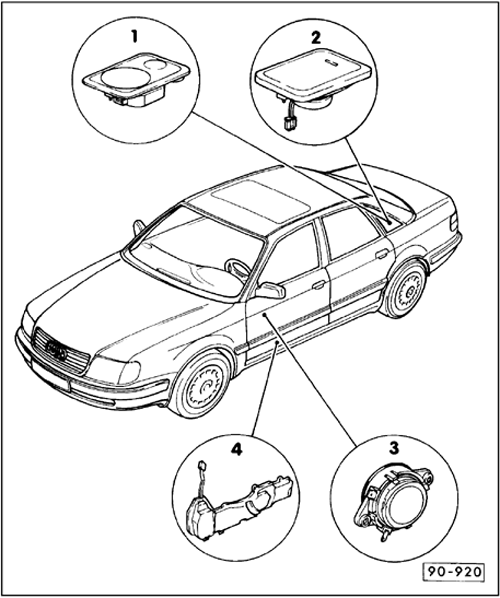

Speaker System Components: Notes
- Rear speaker (active)
- Low and high frequency speaker assembly
- Removing and installing Fig. 1 Rear speaker, removing and installing (including Bose system)
- Replace as an assembly only
- Rear speaker Bose (active)
- Audi Bose system only
- Removing and installing Fig. 1 Rear speaker, removing and installing (including Bose system)
- High frequency speaker, front
- Connected to front low frequency speaker
- Audi Gamma radio system (non-Bose) only
- Removing and installing Fig. 2 Speaker enclosure (bass reflex box) and high frequency speaker, removing and installing
- Speaker enclosure (bass reflex box)
- Mounted on inner side of door trim
- Removing and installing Fig. 2 Speaker enclosure (bass reflex box) and high frequency speaker, removing and installing
- Mounting location for low frequency speaker (non-Bose radio system)
- Mounting location for Bose speaker (including amplifiers)
- Removing and installing front speaker trim Fig. 3 Front speaker trim, removing and installing
