Country Code, Checking
-- Switch ignition OFF.
-- Press and hold RESET button.
-- Switch ignition ON.
-- Release RESET button.

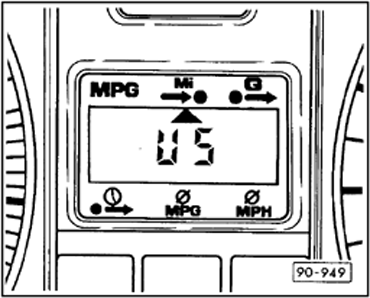

-- Press upper function selector switch and hold down, country code is displayed:
- US for U.S.A. models
- CA for Canadian models
- SA for Saudi Arabian models
NOTE:
The country codes for Canada (CA) and Saudi Arabia -SA- appear alternately approximately once per second.
If correct country code is displayed:
-- Switch ignition OFF.
-- Check fuel injection code, next page.
If correct country code is NOT displayed:
-- Check coding connector for proper application.
