Night Vision System Camera -R212-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

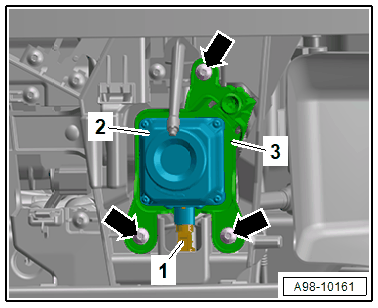

-- Remove the bolts -arrows-.
-- Remove the retaining plate -3- with the Night Vision System Camera -R212- -2-.
-- Disconnect the connector -1-.

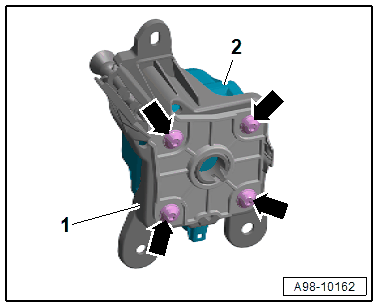

-- Remove the bolts -arrows-.
-- Remove the camera -2-.
