Wireless Data Transmission Antenna -R336-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

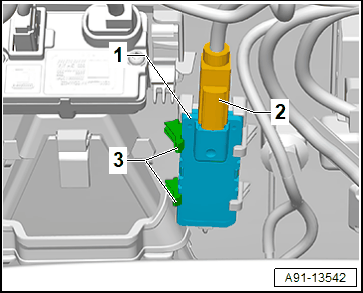

-- Remove the cover beside the roof module. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -3-.

-- Remove the Wireless Data Transmission Antenna -R336- -1-.
