Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
If the control module is replaced, the test plan to replace the control module must be performed.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to DIAGNOSTIC ENTRY .
-- Remove the airbag unit with the Driver Airbag Igniter -N95-. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Draw sketches or take pictures of the wire routing in the steering wheel.

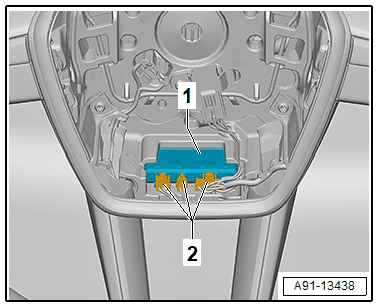

-- Disconnect the connectors -2-.
-- Remove the Steering Wheel Touch Recognition Control Module -J1158- -1-.
