Emergency Call Module Antenna 4 -R380-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

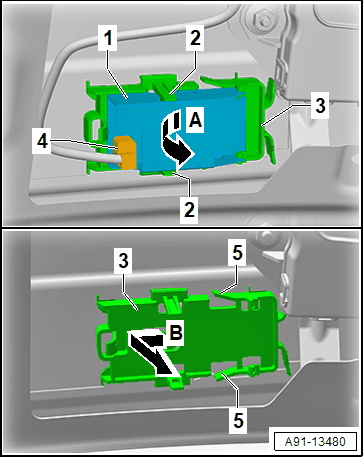

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -2-.

-- Pivot out the Emergency Call Module Antenna 4 -R380- -1- in direction of -arrow A-.

Remove the antenna bracket

-- Release the retaining tabs -5-.

-- Remove the bracket -3- -arrows B-.
