Driver Volume Control -E67-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
If the Driver Volume Control -E67- is Replaced, then the Test Plan for Replacing the Volume Control Must be Performed:
-- Perform the function for replacing the volume control using the Vehicle Diagnostic Tester. Refer to DIAGNOSTIC ENTRY .
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

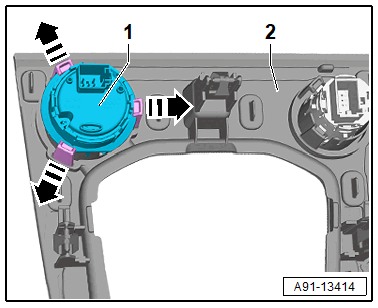

-- Release the retainers in direction of -arrows-.
-- Remove the volume control -1-.
