Component Location Overview - Components/Control Modules In Center Section Of Vehicle

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

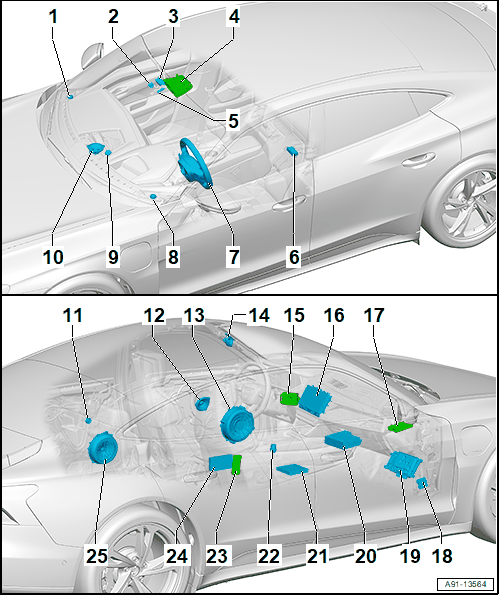

GWWA91-13564Courtesy of AUDI OF AMERICA, LLC
  1. 1 -

    Right Front Treble Speaker -R22-

  2. 2 -

    GPS Antenna -R50-

  3. 3 -

    Emergency Call Module Antenna 3 -R323-

  4. 4 -

    Telephone Microphone -R38-

  5. 4 -

    Interior Microphone -R74-

  6. 5 -

    Wireless Data Transmission Antenna -R336-

  7. 6 -

    USB Connection 1 -U41-

  8. 7 -

    Multifunction Buttons in Steering Wheel

  9. 7 -

    Steering Wheel Shift Paddle

  10. 7 -

    Steering Wheel Touch Recognition Control Module -J1158-

  11. 8 -

    Left Front Treble Speaker -R20-

  12. 9 -

    Near Field Communication Antenna -R269-

  13. 10 -

    Center Speaker -R208-

  14. 11 -

    Rear Treble Speaker

  15. 12 -

    Front Midrange Speaker

  16. 13 -

    Front Bass Speaker

  17. 14 -

    Front Treble Speaker 2

  18. 15 -

    Emergency Call Module Speaker -R335-

  19. 16 -

    Front Information Display Control Head -J685-

  20. 17 -

    Chip Card Reader Control Module -J676-

  21. 17 -

    Android Operating System Control Module -J1243-

  22. 18 -

    Cellular Telephone Amplifier -R86-

  23. 19 -

    Digital Sound System Control Module -J525-

  24. 20 -

    Information Electronics Control Module 1 -J794-

  25. 21 -

    Control Module for Emergency Call Module and Communication Unit -J949-

  26. 22 -

    Driver Volume Control -E67-

  27. 23 -

    USB Distributor -R293-

  28. 24 -

    Mobile Device Charger 1 -J1146-

  29. 25 -

    Rear Bass Speaker
