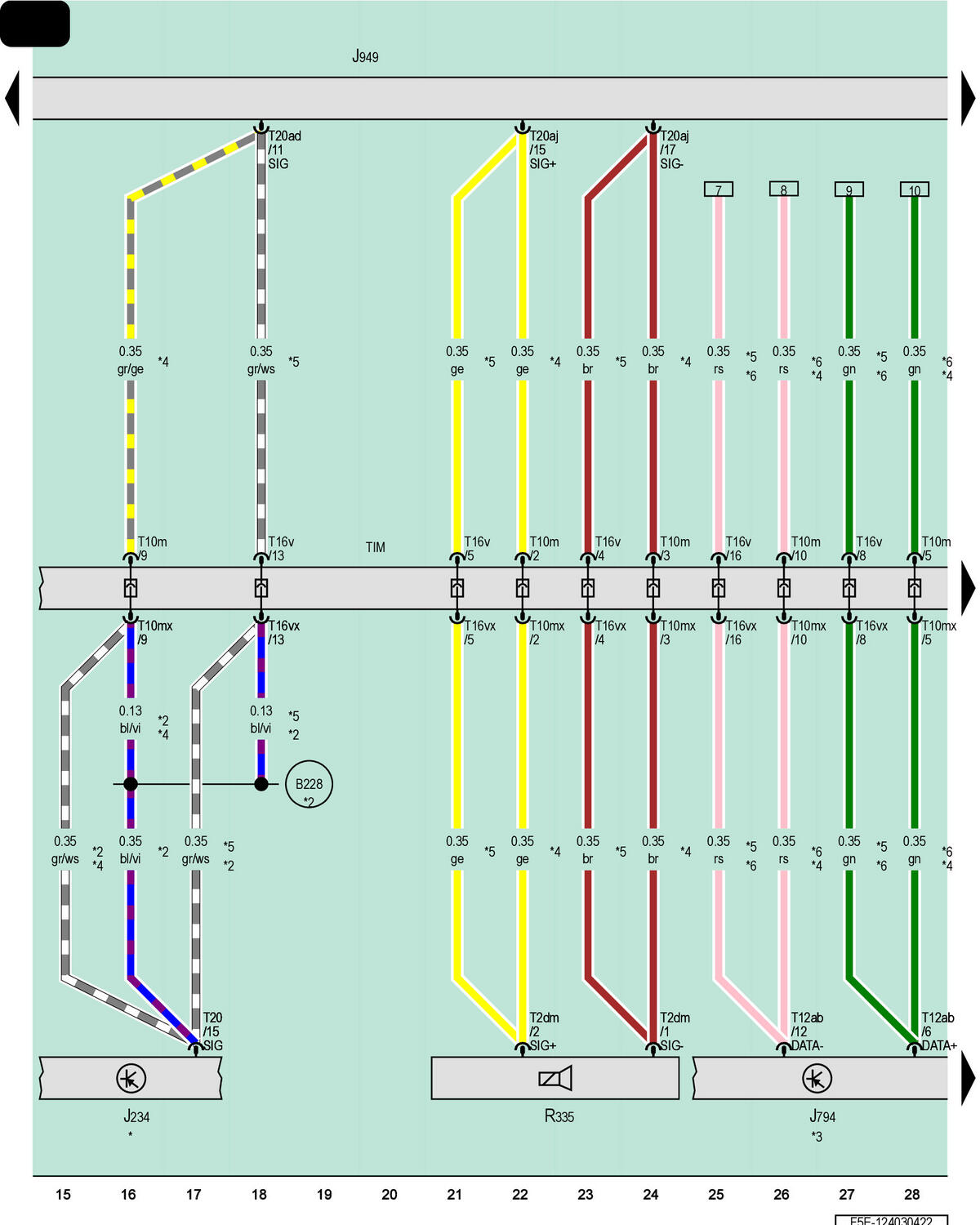

Airbag Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker
J234
Airbag Control Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R335
Emergency Call Module Speaker
T2dm
2-Pin Connector, Black
T10m
10-Pin Connector, Black
T10mx
10-Pin Connector, Black
T12ab
12-Pin Connector, Green
T16v
16-Pin Connector, Brown
T16vx
16-Pin Connector, Brown
T20
20-Pin Connector, Yellow
T20ad
20-Pin Connector, Black
T20aj
20-Pin Connector, Naturally Cloudy
TIM
Coupling Point in Interior, Center
B228
Crash Signal Connection (in Interior Wiring Harness)
*
Refer to Applicable Airbag Wiring Diagram
*2
Depending on Equipment
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
Through November 2019
*5
From December 2019
*6
Ethernet Connection
