Special Tools
Warning Sign - High Voltage:VAS6649
Make sure the area around the vehicle is safe before starting any work on the high-voltage vehicle. It is mandatory to place a "Warning! High-Voltage!" sign on the vehicle so that it is visible to all.
Warning Sign - "Do Not Switch On" :VAS6650A
Place the "Do not switch on. Work in progress" sign on the vehicle so that it is visible to all after de-energizing the vehicle.
Warning Sign - Battery:VAS6786
If an undamaged high-voltage battery is stored temporarily, mark the storage area with the sign "Warning Sign - Battery".

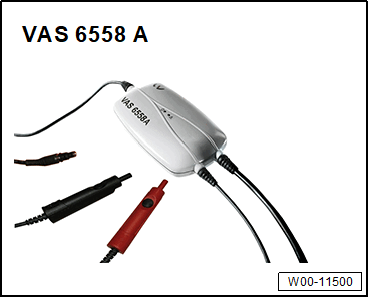

High-Voltage Measuring Mode:VAS6558A
Specific measurement and test procedures are performed on high-voltage vehicles using the High-Voltage Measuring Mode:VAS6558A . In addition to the known functionality of the VAS 6558, the High-Voltage Measuring Mode:VAS6558 includes the potential equalization measurement function (checking the ground connection from high-voltage components) as well as the ohmic continuity test to check vehicle-specific adaptations. Vehicle-specific test adapters are required for adapting the measurement module.
Padlock:T40262/1
The safety precautions when working on electrical systems require that the high-voltage system be secured against re-energizing after it has been de-energized. The High-Voltage System Maintenance Connector -TW- (low-voltage service disconnect) can be locked using the lock.

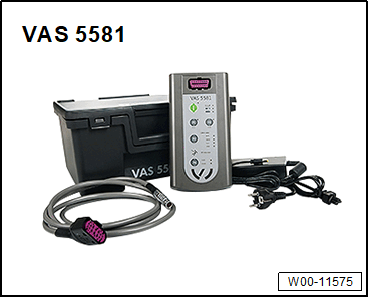

Diagnostic Box:VAS5581
The Diagnostic Box:VAS5581 is needed to diagnose autonomous high-voltage traction batteries. The high-voltage diagnostic box is supplied with voltage via a power supply or a battery that can be ordered separately.
Audi e-tron Charging System
The Audi e-tron charging system is used to charge the vehicle and for Fault Finding. The charging system can be ordered through Audi original parts and does not have a tool number.
- Charging Cable with Industrial Connector
- Charging Cable with Household Connector
- Control Head
- Charging Cable with Vehicle Connector
