Component Location Overview - Seat Occupant Detection System

For the Seat Heating Element Is Used for the Seat Occupant Detection System.

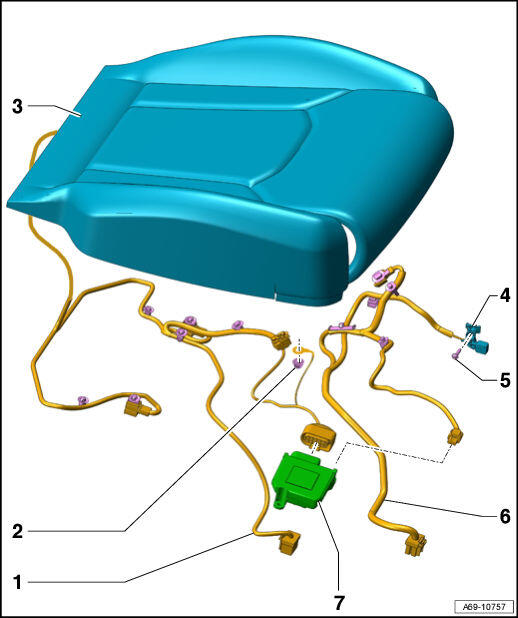

Fig 1: Exploded View Of Passenger Occupant Detection System

Courtesy of AUDI

1. Wiring Harness
   • For the seat heating element with seat occupant detection system
   • Connector station in the underbody under the seat.
   • Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING
2. Nut
   • 1.5 Nm
3. Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module -ZX14-
   • Market-Specific Version
   • The seat heating element is used for the seat occupant detection system
   • With Front Passenger Seat Heating Element -Z8- and Passenger Seat Occupant Detection Sensor -G128-
   • Depending on the seat version, the Passenger Seat Occupant Detection Sensor -G128- is either sewn into the cover with the seat heating element, or bonded onto the cushion
   • Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING
4. Front Passenger Seat Position Sensor -G554-
   • Driver seat: Driver Seat Position Sensor -G553-
   • Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING
5. Bolt
   • Tightening Specification. Refer to -item 6-  OVERVIEW - SEAT POSITION SENSOR.
6. Wiring Harness
   • For the seat position sensor/seat belt fastening detection/seat belt switch
   • Connector station in the underbody under the seat.
   • Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING
7. Seat Occupant Detection System Control Module -J706-
   • Refer to Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING

Control Module Tightening Specification on Bracket - Standard seat

Fig 2: Control Module Tightening Sequence on Bracket - Standard Seat

Courtesy of AUDI

-- Tighten the screws -2- to 1.5 Nm.
