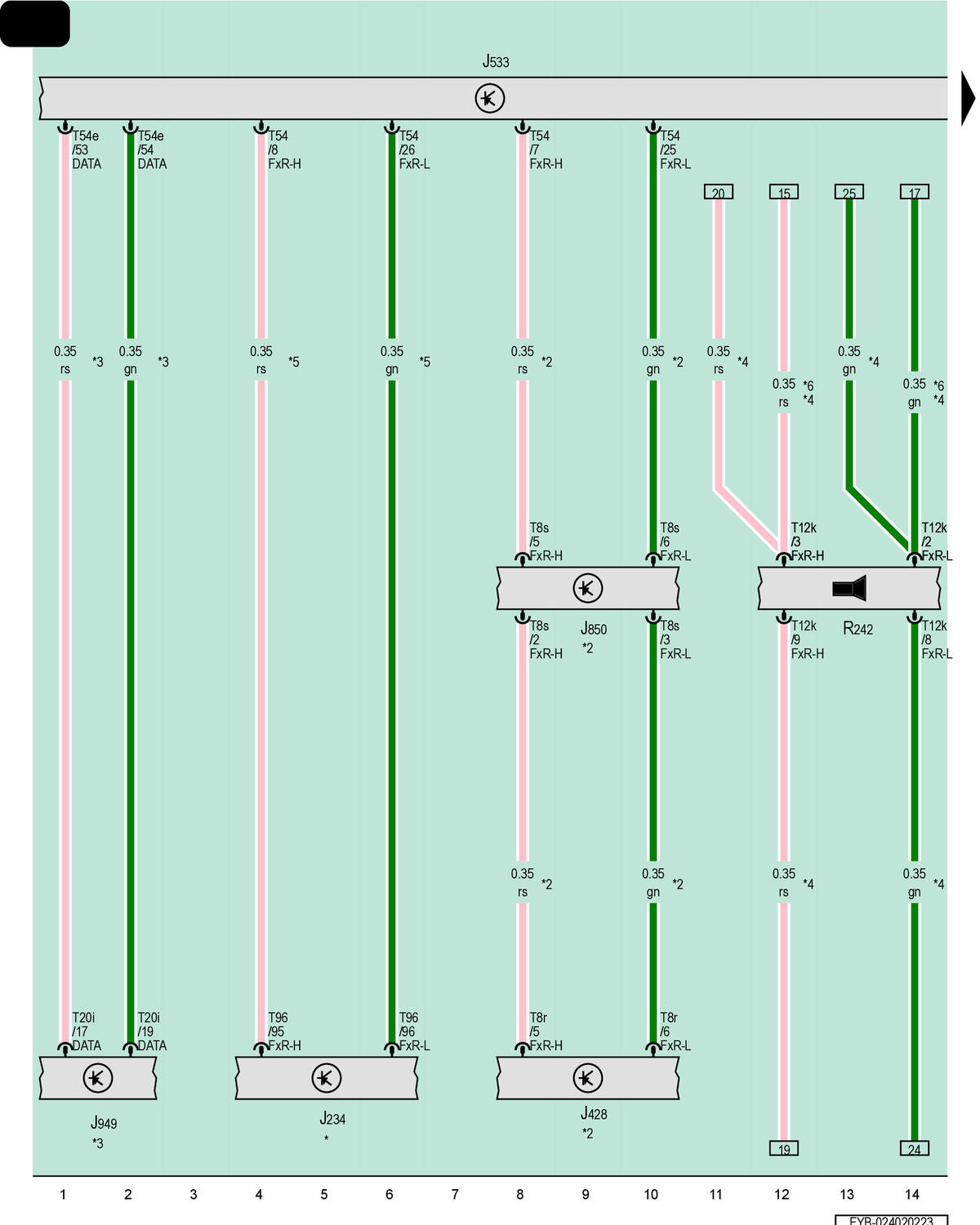

Airbag Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Control Module 2 For Adaptive Cruise Control, Control Module For Emergency Call Module And Communication Unit, Driver Assistance Systems Front Camera

Courtesy of AUDI

J234

Airbag Control Module

J428

Control Module for Adaptive Cruise Control

J533

Data Bus on Board Diagnostic Interface

J850

Control Module 2 for Adaptive Cruise Control

J949

Control Module for Emergency Call Module and Communication Unit

R242

Driver Assistance Systems Front Camera

T8r

8-Pin Connector, Black

T8s

8-Pin Connector, Black

T12k

12-Pin Connector, Black

T20i

20-Pin Connector, Black

T54

54-Pin Connector, Black

T54e

54-Pin Connector, Gray

T96

96-Pin Connector, Black

*

Refer to Applicable Airbag Wiring Diagram

*2

For Vehicles with Adaptive Cruise Control (ACC)

*3

For Vehicles with Emergency Call Module

*4

For Driver Assistance System

*5

The Color of the Wires Depends on Vehicle Equipment

*6

For Vehicles with Electronic Damping
