Front Transmission Identification 0MA

• The transmission 0MA is always installed on the front drive motor for the e-tron 50/55 and the e-tron S.

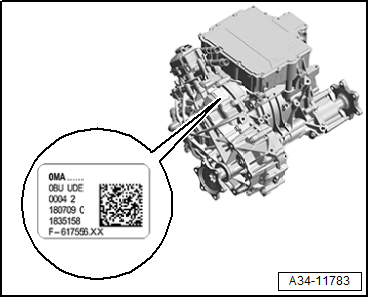

Location on Transmission 0MA

Courtesy of AUDI OF AMERICA, LLC

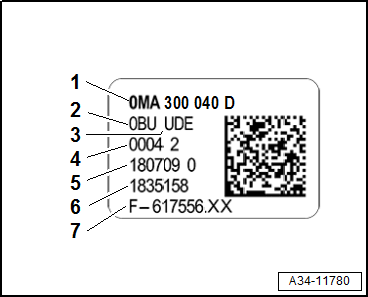

Transmission Information 0MA

Courtesy of AUDI OF AMERICA, LLC

1. Part number. Refer to Parts Information.
2. Assembly Group Number
3. Transmission Code
4. Transmission Serial Number
5. Production Date (Year Month Day)
6. Dimension for angular contact ball bearing shim and axial bearing shim ¹⁾
7. Ignore
