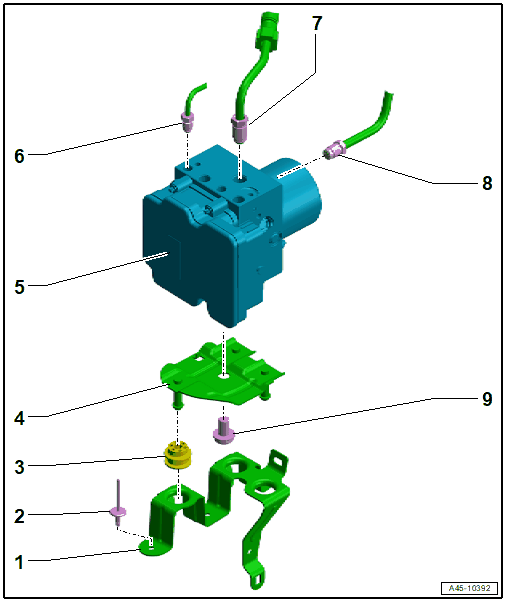

Overview - Control Module And Hydraulic Unit

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
2. Pop Rivet
   • Quantity: 4
3. Rubber Bushing
   • Quantity: 3
4. Bracket
5. ABS Control Module -J104- /ABS Hydraulic Unit -N55-
   • Do not disassemble
   • Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING  .
6. Brake Line to the Brake Caliper
   • 14 Nm
   • 5 mm diameter M10
   • Quantity: 4
7. Brake Line to the Brake Fluid Reservoir
   • 18 Nm
   • 8 mm diameter M12
8. Brake Line to Brake Master Cylinder
   • 18 Nm
   • 8 mm diameter M12
   • Quantity: 2
9. Bolt
   • 27 Nm
