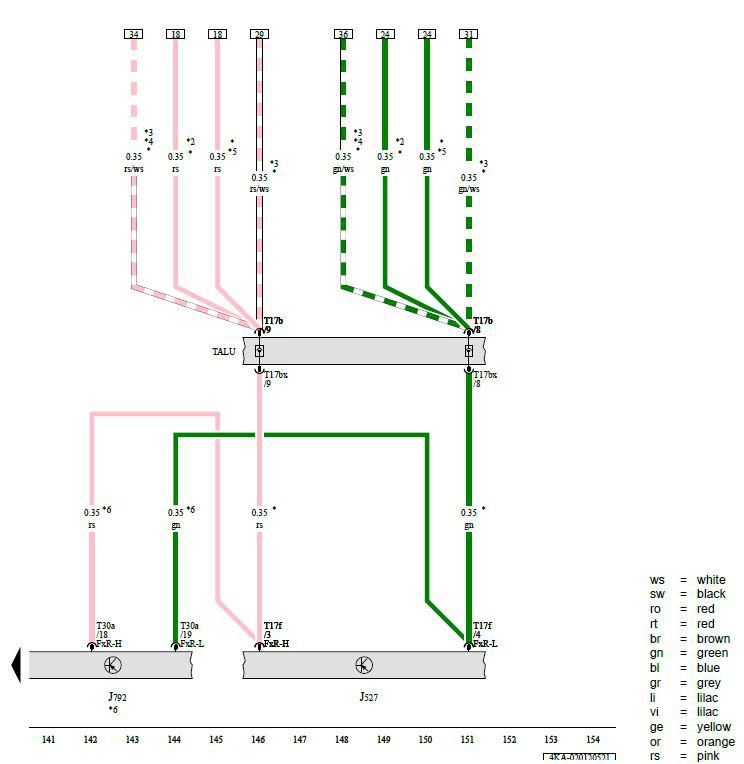

Steering Column Electronics Control Module, Active Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J527 -  Steering Column Electronics Control Module

J792 -  Active Steering Control Module

T17b -  17-Pin Connector, Blue

T17bx -  17-Pin Connector, Blue

T17f -  17-Pin Connector, Yellow

T30a -  30-Pin Connector, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

* -  For Vehicles with Electromechanical Power Steering

*2 -  For Vehicles Without Level Control System

*3 -  For Driver Assistance System

*4 -  Optional Equipment

*5 -  For Vehicles with Level Control System

*6 -  For Vehicles with Active Steering
