Rear Window Spray Pattern, Checking, Wet Wiper Arm

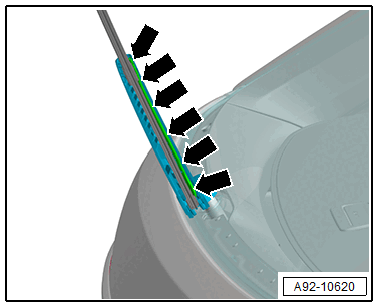

The wet wiper arm on the rear is equipped with multiple vents. The spray pattern must be checked at all nozzles -arrows- spray water.

• Points of impact are just above the wiper blades
• Even water spray from all vents.
• The jet from the outermost nozzle hits approximately at a distance of 10 cm from the wiper arm nozzle.

  Courtesy of AUDI OF AMERICA, LLC

Procedure:

-- Activate the rear window washer system and assess the spray pattern.

-- If the spray pattern does not meet these specifications, adjust the spray nozzles.
