Component Location Overview - Rearview Camera System
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.

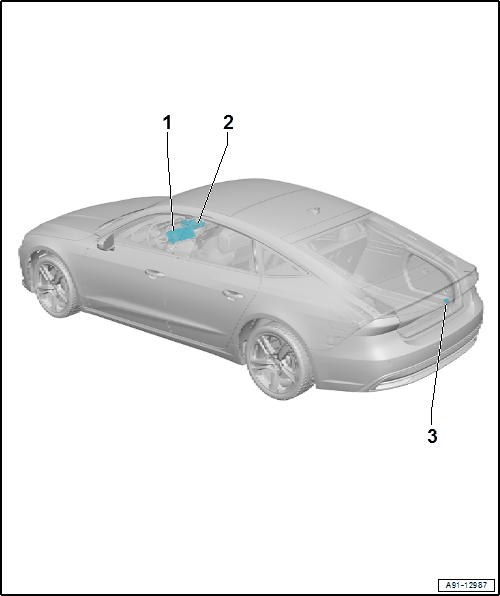

- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Front Information Display Control Head -J685-, REMOVING AND INSTALLING .
- Refer to the appropriate Wiring Diagram
- Information Electronics Control Module 1 -J794-
- Behind the Glove Compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Refer to the appropriate Wiring Diagram
- Rearview Camera -R189-
- With Rearview Camera System Control Module -J772-
- In the rear lid
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Refer to the appropriate Wiring Diagram
