Engine, Removing, 2.9L Engine

Special tools and workshop equipment required

• Engine Bung Set:VAS6122
• Scissor Lift Table:VAS6131B
• Scissor Lift Table - Audi Set:VAS6131/10
• Scissor Lift Table - A8 Set - Adapter:VAS6131/11-1  from Scissor Lift Table - A8 Set:VAS6131/11  , not illustrated
• Universal Supports:VAS6131/13-2  from Scissor Lift Table - Q7 Set:VAS6131/13
• Coolant Collecting System:VAS5014  or Shop Crane - Drip Tray:VAS6208
• Hose Clip Pliers:VAS6340
• Hose Clip Pliers:VAS6362
• Engine and Gearbox Jack:VAS6931
• Ball Joint Splitter (Kukko 129-3):VAS251805
• Ball Joint Splitter: VAS251809  with : VAS251809/1  , not illustrated
• Tensioning Strap:T10038
• Commercially available Step Ladder

Procedure

• With the lock carrier installed, the engine is removed downward with the transmission and subframe.
• Install cable ties at the same locations when installing.
• Pay attention to the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
• All chassis component bolts with bonded rubber bushings must be tightened in the control position.
• Bonded rubber bushings have a limited range of rotation. Before axle components with bonded rubber bushings are tightened, they have to be brought to a position which matches the position when the vehicle is being operated (control position). Otherwise, the bonded rubber bushing will be under stress, which will reduce the service life.

-- Before starting the procedure, determine the control position. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

-- Position the front wheels so they are straight.

-- Switch off the ignition.

• The electro-mechanical parking brake must be released before disconnecting battery so the driveshaft can be rotated to remove it.

-- De-energize the 48 Volt system and disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

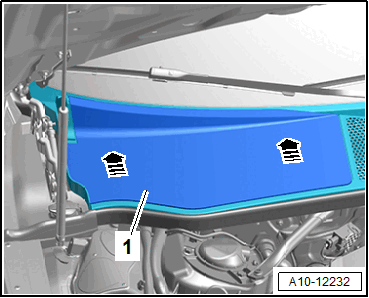

-- Remove the cover -1- toward the rear in direction of -arrows- and remove.

Courtesy of AUDI OF AMERICA, LLC

-- Open the coolant expansion tank cap -1- by releasing the catch -arrow-.

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

-- Remove the front wheels. Refer to WHEELS AND TIRES .

-- Remove the left and right wheel spoiler and the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the driveshaft. Refer to the appropriate service information .

-- Place the container of the Coolant Collection System :VAS5014  or the Shop Crane - Drip Tray:VAS6208  underneath.

Courtesy of AUDI OF AMERICA, LLC

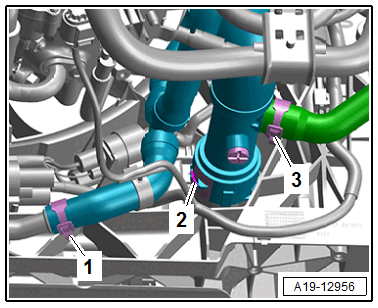

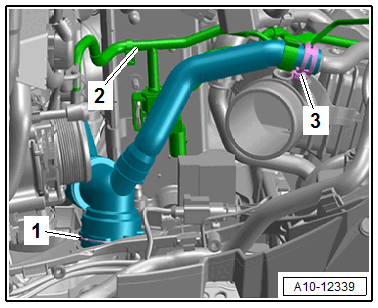

-- Lift the clamp -2-, remove the coolant hose from the radiator and allow the coolant to drain.

-- Loosen the hose clamps -1 and 3- and remove the coolant hoses.

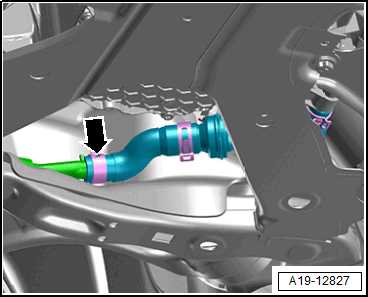

-- Open the hose clamp -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant hose from the right coolant pipe, hold it downward, and allow the coolant to drain.

-- Carefully pull the engine cover off the retaining pins one after the other in direction of -arrows-. Do not remove the engine cover on one side or in a jerking manner.

-- If the engine and transmission must be separate, remove the ball pins and bolts -arrows- and remove the heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Courtesy of AUDI OF AMERICA, LLC

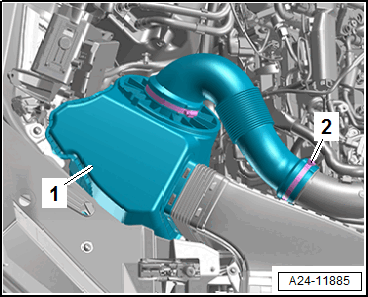

-- Loosen the hose clamp -2- and remove the air duct pipe.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the air filter housing -1- upward and remove it.

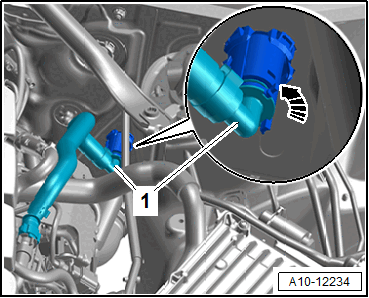

-- Disconnect the fuel hose -1-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

-- Always seal off any open lines and connections with plugs that are thoroughly cleaned from the :VAS6122  .

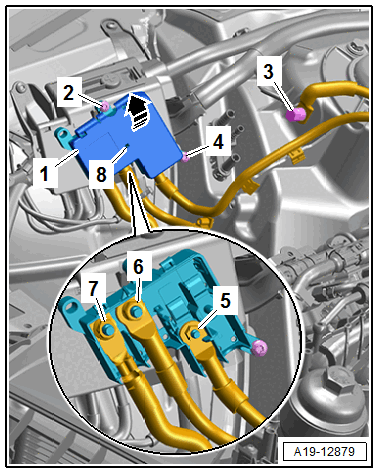

-- Release the catch through the opening -8- using a small screwdriver and open the cover -1- in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -3, 5 and 7- and free up the wires.

-- Remove the bolts -2 and 4- and move the Terminal 40 Wire Junction -TV66- to the side.

-- Release the catch in direction of -arrow A- and open the E-box -1- in direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and free up the B+ wire.

-- Lift the clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clamp -2- and disconnect the coolant ventilation line.

Courtesy of AUDI OF AMERICA, LLC

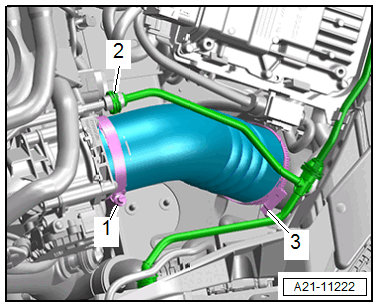

-- Loosen the hose clamps -1 and 3- and remove the air duct hose.

-- Lift the clip -1- and remove the upper left coolant hose from the radiator.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -3- and disconnect the coolant hose.

-- Disconnect the vacuum hose -2- at the same time to not damage it.

-- Equipment versions with vacuum brake booster: release the catch in direction of -arrow-, remove the vacuum hose -1- and do not damage it.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connectors -2- and free them up.

Courtesy of AUDI OF AMERICA, LLC

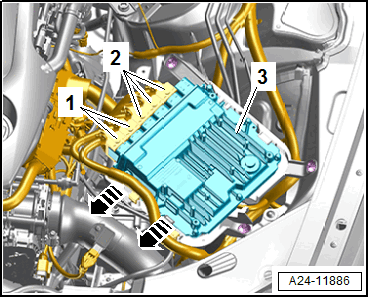

-- Release the catches -arrows- and move the Engine Control Module -J623- -3- to the side.

-- Remove the connectors -1 and 2- from the bracket and disconnect them, and then free up the wires:

Courtesy of AUDI OF AMERICA, LLC

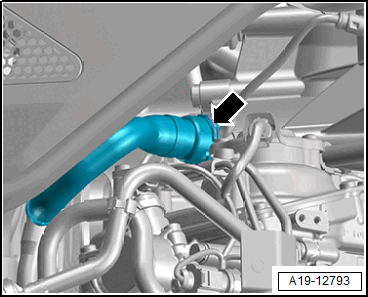

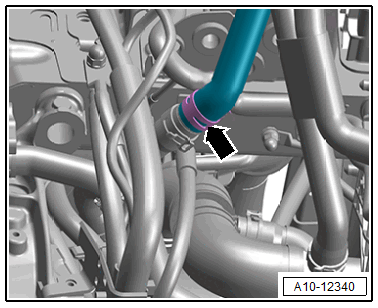

-- Loosen the hose clamp -arrow- and disconnect the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt/expanding rivet -1- and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connectors -2 and 3- from the bracket and disconnect.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 4- and free up the ground wires.

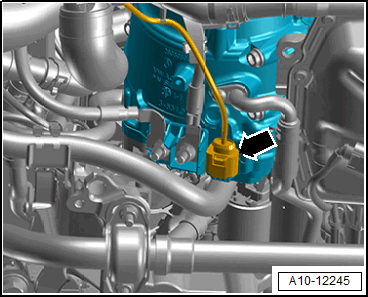

-- Disconnect the connector -arrow- on the starter generator.

Courtesy of AUDI OF AMERICA, LLC

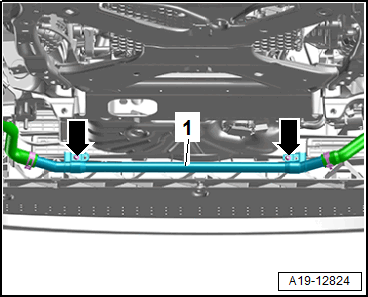

-- Remove the bolts -arrows- and press the coolant pipe -1- to the rear on the lock carrier.

Courtesy of AUDI OF AMERICA, LLC

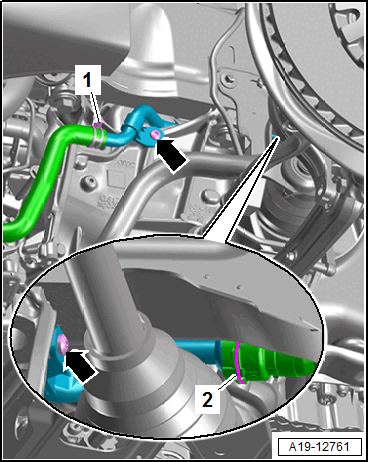

-- Loosen the hose clamp -1-, lift the clamp -2- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

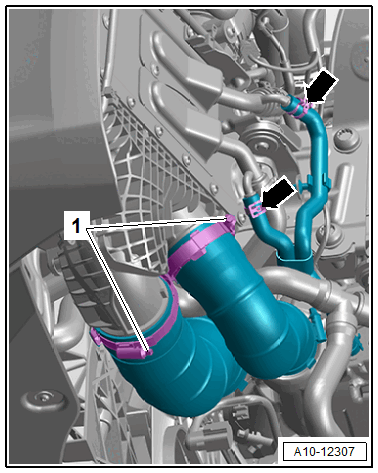

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the screw-type clamps -1- and remove the air duct hoses.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the left and right Engine Support Bridge - Special Hook (2 pc.):10-222A/20  to the body, and tie up the wheel bearing housing as shown using the Tensioning Strap:T10038

-- To protect the threads, remove the nut -arrow- on the left and right side from the tie rod end joint pin until it is flush with the joint pin threads.

Courtesy of AUDI OF AMERICA, LLC

• To prevent damage to the ball joint puller, both pry arms on the pull must be parallel to each other when the most force is applied.

-- Remove the left and right tie rod end with the Ball Joint Splitter:VAS251805  from the wheel bearing housing.

-- Remove the nut by counterholding at the ball joint with a 6 mm inner hex socket if necessary.

-- To protect the threads, remove the nut -arrow- on the left and right from the guide link joint pin just until it is flush with the joint pin threads. If necessary counterhold the joint pin.

Courtesy of AUDI OF AMERICA, LLC

• To prevent damage to the ball joint puller, both pry arms on the pull must be parallel to each other when the most force is applied.

-- Remove the left and right guide link joint pin from the conical seat using the Ball Joint Splitter:VAS251809  with Ball Joint Splitter :VAS251809/1  . Do not damage the CV boot while doing this.

-- Remove the nut and free up the guide link on the wheel bearing housing. If necessary, counterhold the joint pin with a TX 40 socket to do this.

-- Loosen the subframe shield and push it slightly to the side. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

-- Equipped on some models: disconnect the left and right connector -3- for the level control system sensor and free up the wire.

-- Remove the nut -2- and free up the coupling rod.

-- Clean the steering gear and the subframe near the boot.

-- Open the spring clamp -3- using the Hose Clip Pliers:VAS6362  .

-- Remove the clamp -1- and remove the boot -2- outward from the steering gear.

-- Disconnect the threaded connections -1 and 3- for the control arm.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the control arm toward the front.

• To remove the bolt -1-, push the steering all the way to the left or right.

-- Repeat the procedure on the other side of the vehicle.

-- Remove the left and right nut -3- and the bolt -1- for the coupling rod -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right drive axles from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the steering intermediate shaft from the steering gear and push together. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

-- Remove the ribbed belt from the A/C compressor belt pulley. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the A/C compressor from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .

-- Disconnect the connector -2- for the Transmission Fluid Auxiliary Hydraulic Pump 1 -V475- on the right side of the transmission and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for the Transmission Fluid Cooling Valve -N509-.

If the engine and transmission should then be separated:

-- Place a cloth under the separating point to soak up any escaping coolant.

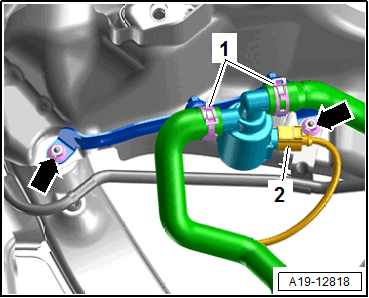

-- Loosen the hose clamps -1- and remove the coolant hoses.

-- Remove the bolts -arrows- and then remove the transmission fluid cooling valve.

Courtesy of AUDI OF AMERICA, LLC

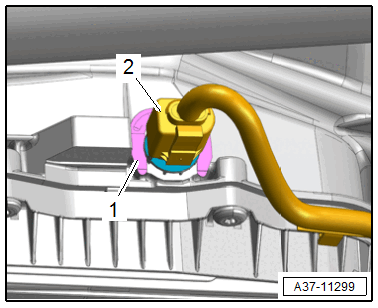

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector -1- from the transmission.

-- Free up the wiring harness.

-- Remove the bolts -arrows- and free up the parking lock emergency release cable -1-.

Courtesy of AUDI OF AMERICA, LLC

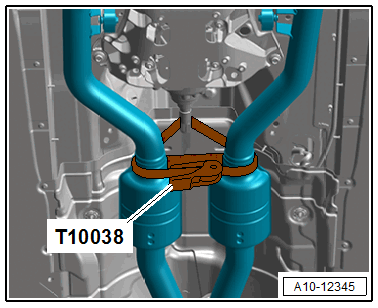

-- Secure the front muffler as shown with the Tensioning Strap:T10038  .

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the front area of the left and right center underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

Scissor Lift Table, Preparing:

-- Set up the Scissor Lift Table: VAS6131B  as follows:

Table Coordinates	Parts from the Scissor Lift Table - Audi Set:VAS6131/10  , Scissor Lift Table - A8 Set Adapter 1:VAS6131/11-1  and Scissor Lift Table - Audi Set Universal Supports:VAS6131/13-2
C4	/10-1	/10-4	/10-5	/10-11
E4	/10-1	/10-4	/10-5	/10-11
C14	/10-1	/10-3	/10-5	/10-6
E14	/10-1	/10-3	/10-5	/10-6

-- Secure the mounting elements to the scissor lift table by hand.

-- Position the :VAS6131B  so it is level.

• Note the bubble level (sight glass) on support platform.

-- Guide the :VAS6131B  under the engine/transmission assembly.

-- Position the mounting element from the :VAS6131/10  on the left and right on the engine.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the threaded spindles are completely screwed in.

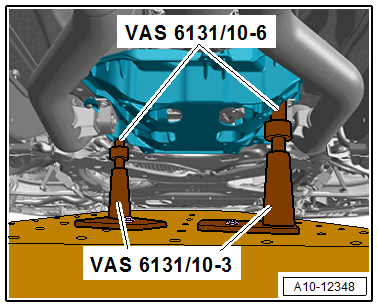

-- Install the mounting elements from the :VAS6131/10  on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the remaining mounting element spindles upward until all the mounting pins come in contact with the mounting points.

-- Fasten the mounting element base plates to 20 Nm on the :VAS6131B  .

-- Secure the subframe. Refer to SUBFRAME, LOWERING .

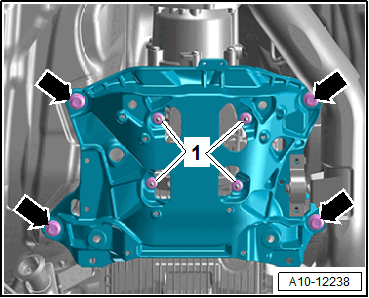

-- Remove the bolts -arrows- on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the Scissor Lift Table:VAS6131B  with the engine/transmission assembly and remove from under the vehicle.

-- Tie up the drive axles.
