Bevel Box, Removing

Special tools and workshop equipment required

• Slide Hammer Set: VW771
  Fig 1: Identifying Slide Hammer Set

  Courtesy of AUDI OF AMERICA, LLC
• Socket - 8mm: T40276

  Courtesy of AUDI OF AMERICA, LLC

• Holding Fixture - Spacers: VW540/1B

  Courtesy of AUDI OF AMERICA, LLC

• Puller - Bevel Gear: T10472

  Courtesy of AUDI OF AMERICA, LLC

• Socket and Extended Bit: T10107A
  Fig 2: Identifying Socket And Extended Bit

  Courtesy of AUDI OF AMERICA, LLC
• Commercially available lever

Removing

-- Remove the subframe with the steering gear. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .

-- Remove the driveshaft from the bevel box. Refer to the appropriate Service Information .

-- Remove the right drive axle from the bevel box and tie it up toward the rear. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the bolts -1 and 2- and remove the bevel box bracket.

Courtesy of AUDI OF AMERICA, LLC

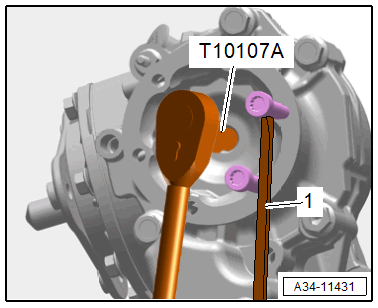

-- Remove the right flange shaft bolt using the Socket and Extended Bit: T10107A  by installing two bolts in the flange and counterholding the flange shaft with an assembly lever -1-.

Courtesy of AUDI OF AMERICA, LLC

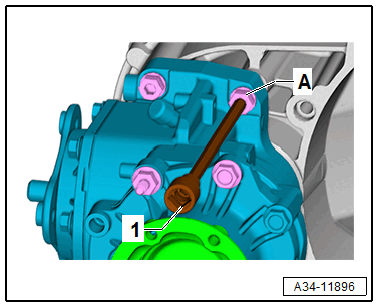

-- Remove the upper bolts -A- for the bevel box retainer at the transmission using the Socket - 8mm: T40276  .

Courtesy of AUDI OF AMERICA, LLC

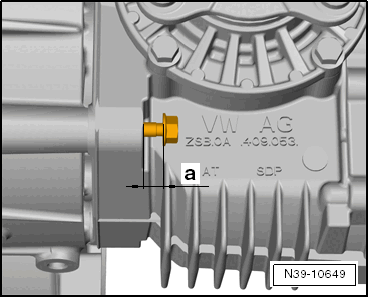

-- Only loosen the lower bolts -arrows- for securing the bevel box on the transmission and remove up to dimension -a-.

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = 15 mm.
• This prevents the transmission from falling when loosening with the Slide Hammer Set: VW771  .

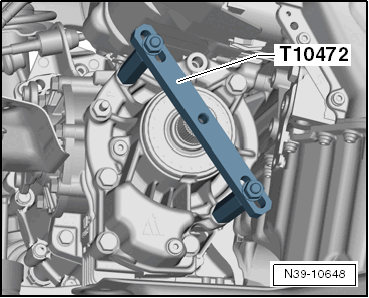

-- Install the Puller - Bevel Gear: T10472  on the bevel box as shown.

Courtesy of AUDI OF AMERICA, LLC

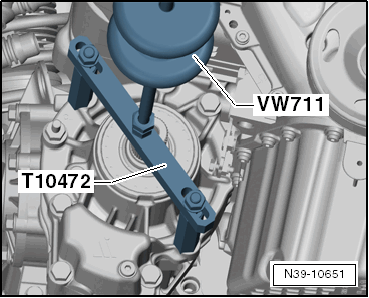

-- Prepare the Slide Hammer Set: VW771  with a washer -a- and two sleeves from the Holding Fixture - Spacers: VW540/1B  as shown.

-- Fasten the Slide Hammer Set: VW771  to the Puller - Bevel Gear: T10472  and detach the bevel box to the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the slide hammer and puller.

-- Remove the lower bolts and remove the bevel box.
