Overview - Steering Column

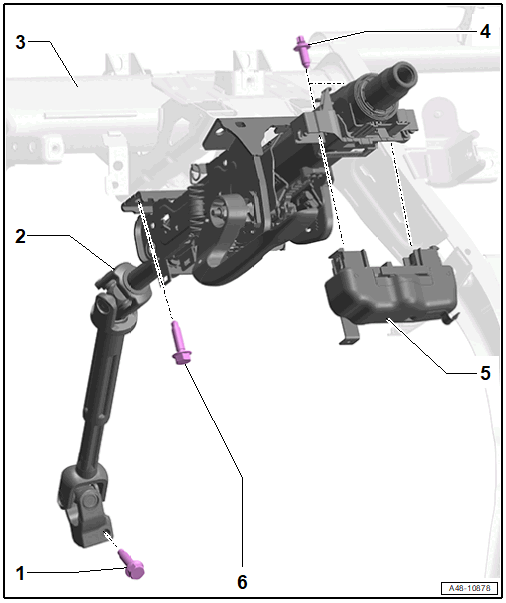

Fig 1: Exploded View Of Steering Column

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole (for example, using a thread tap) before installing the new bolt.
Steering Column
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- The steering column must be engaged on the instrument panel crossmember mounting bracket when installing (assembly aid).
Instrument Panel Crossmember
Shear bolt
- Loosening and tightening. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING
Electronic Steering Column Lock Control Module -J764-
- Removing and Installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Replace after removing
