USB Distributor -R293-, REMOVING AND INSTALLING: Notes
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

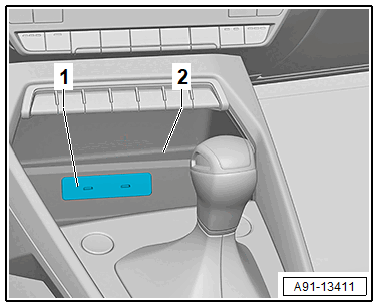

The USB Distributor -R293- -1- is installed in the front center console storage compartment -2-.
If the USB Distributor -R293- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Diagnostic-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0743 - USB Distributor -R293-, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
