Overview - Instrument Cluster

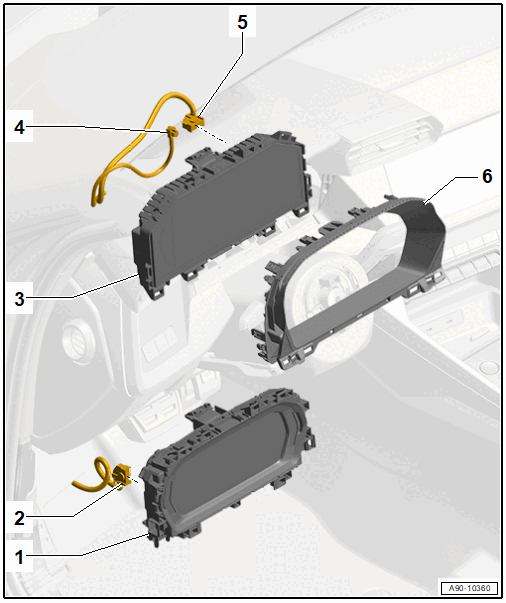

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Instrument Cluster -KX2- (7J2, 9S1)
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If faulty replace the instrument cluster
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Connector
- For the instrument cluster
Instrument Cluster -KX2- (9S9)
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If faulty replace the instrument cluster
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Antenna Wire
Connector
- For the instrument cluster
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
