Upshift And Downshift Paddle Switch E755/ E756, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Pay attention to the location of the connecting cable -2- to the multifunction button.

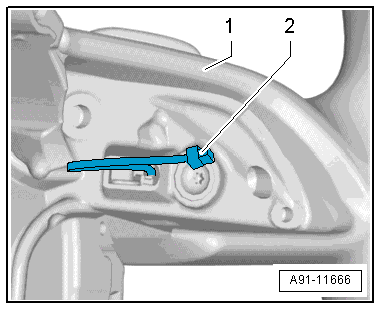

Fig 1: Be Careful Of Connectors To Tiptronic Switches

Courtesy of AUDI OF AMERICA, LLC
