Roof Antenna -RX5-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.

-- Lower the headliner. Refer to HEADLINER, LOWERING .

Vehicles with Internet Access Control Module -J666-

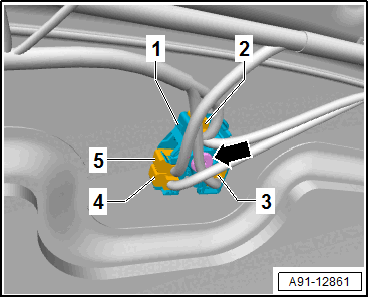

-- Disconnect the antenna wires -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -5-.

-- Release the hook -2- and put aside the control module -1- with the wires still attached.

Vehicles without Internet Access Control Module -J666-

-- Disconnect the antenna wires -2- through -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -arrow- and remove it with the clip.

Continuation for all vehicles

-- Release the hook -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Roof Antenna -RX5- -1- -arrow-.
