Information Electronics Control Module 1 J794, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.
If the control module is replaced, the test plan for replacing the control module must be performed.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
Continuation
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

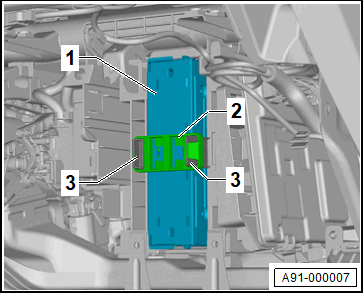

-- Remove the securing strap -2-.
-- Release the hook -3-.
-- Pull out the Information Electronics Control Module 1 -J794- -1- and at the same time pivot downward.
-- Disconnect the connectors on the control module -1-.
-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS 6223/9 -1- onto the MOST bus connector -2-.
