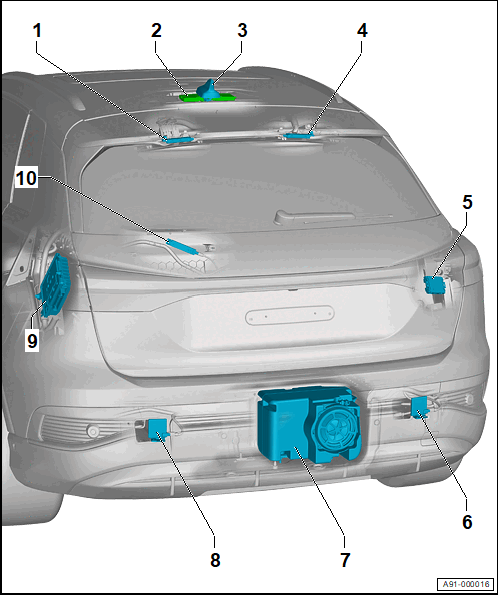

Component Location Overview - Components/Control Modules In Rear Section Of Vehicle

WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Antenna Amplifier -R24-
- with Antenna -R11-
- with TV Antenna 1 -R55-, ER5 and K8G/K8C
- Refer to Antenna Amplifier R24, Removing and Installing .
Internet Access Control Module -J666-
- Refer to INTERNET ACCESS CONTROL MODULE J666, REMOVING AND INSTALLING .
Roof Antenna -RX5-
- With GPS Antenna -R50-
- With Satellite Tuner Antenna -R172-
- with Emergency Call Module Antenna -R263-
- Refer to Roof Antenna -RX5-, Removing and Installing
Antenna Amplifier 2 -R111-
- with Radio Antenna 2 -R93-
- with Digital Radio Antenna -R183-, ER1/ER7 and K8C/K8G
- with TV Antenna 2 -R56-, ER5 and K8G/K8C
- Refer to Antenna Amplifier 2 R111, Removing and Installing .
Cellular Telephone Amplifier -R86-
- Refer to Cellular Telephone Amplifier R86, Removing and Installing .
LTE Antenna 2 -R306-
- Refer to LTE ANTENNA 2 R306, REMOVING AND INSTALLING, 9ZE .
Subwoofer -R211-
- Refer to Subwoofer R211, Removing and Installing .
Emergency Call Module Antenna 2 -R322-
- Refer to Emergency Call Module Antenna 2 R322, Removing and Installing .
Digital Sound System Control Module -J525-
- Refer to Digital Sound System Control Module J525, Removing and Installing
TV Antenna Amplifier 3 -R84-
- with TV Antenna 3 -R57-
- Sportback: arranged as a mirror image
- Refer to TV Antenna Amplifier 3 R84, Removing and Installing .
