Window Defogger For Front Sensor System Z113, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Driver Assistance Systems Front Camera -R242-. Refer to Driver Assistance Systems Front Camera R242, Removing and Installing .

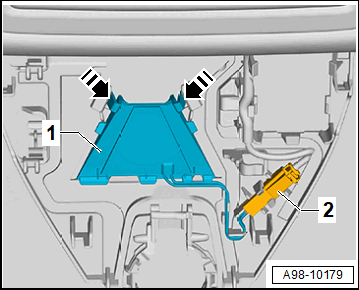

-- Unclip and disconnect the connector -2-.
-- Release the retaining tabs in direction of -arrows-.
-- Remove the Window Defogger for Front Sensor System -Z113- -1-.
