Peripheral Camera Control Module J928, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.
If the Control Module Is Replaced, the Test Plan to Replace the Control Module Must Be Performed.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
Continuation
-- Remove the seat pan. Refer to SEAT PAN, REMOVING AND INSTALLING .

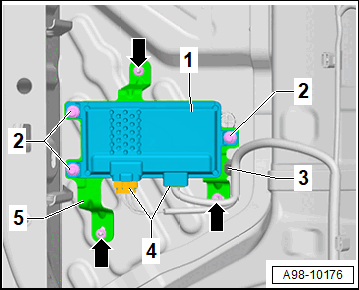

-- Disconnect the connectors -4-.
-- Remove the expanding rivets -2-.
-- Remove the Peripheral Camera Control Module -J928- -1-.
Remove the control module bracket
-- Remove the wiring harness bracket -3-.
-- Remove the nuts -arrows-.
-- Remove the bracket -5-.
