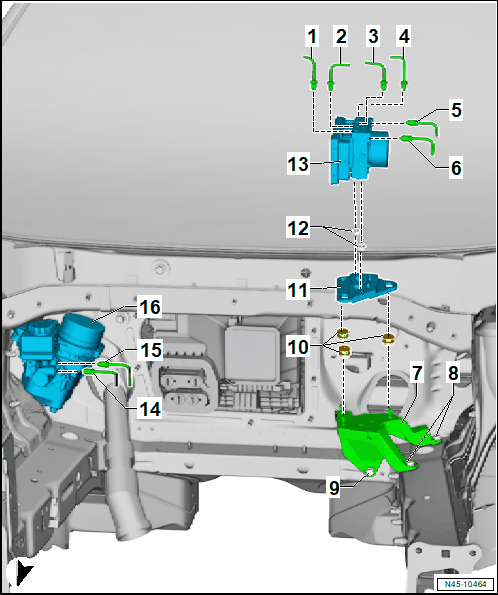

Overview - Control Module And Hydraulic Unit, RHD (Not For North AMERICA)

Courtesy of AUDI OF AMERICA, LLC

1. Brake Line to Right Rear Brake Cylinder
   • Diameter 5.25 mm and tube fitting with shorter thread M12 x 1
   • With commercially available standard tools: 14 Nm
   • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
2. Brake Line to Left Front Brake Caliper
   • 5.25 mm diameter and tube fitting with thread M 10 x 1
   • With commercially available standard tools: 14 Nm
   • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
3. Brake Line to Right Front Brake Caliper
   • Diameter 5.25 mm and tube fitting with shorter thread M12 x 1
   • With commercially available standard tools: 14 Nm
   • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
4. Brake Line to Left Rear Brake Cylinder
   • 5.25 mm diameter and tube fitting with thread M 10 x 1
   • With commercially available standard tools: 14 Nm
   • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
5. Brake Line to Master Brake Cylinder Secondary Piston Circuit
   • Diameter 6 mm and tube fitting with thread M 12 x 1
   • With commercially available standard tools: 14 Nm
   • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
6. Brake Line to Master Brake Cylinder Primary Piston Circuit
   • Diameter 6 mm and tube fitting with thread M 12 x 1
   • With commercially available standard tools: 14 Nm
   • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
7. Bracket
8. Bolt
   • Quantity: 2
   • 20 Nm
9. Bolt
   • 20 Nm
10. Rubber Bushing
11. Bracket
12. Bolt
    • 8 Nm
13. ABS Control Module -J104- with ABS Hydraulic Unit -N55-
    • Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING  .
14. Brake Line, Secondary Piston Circuit to Hydraulic Unit
    • Diameter 6 mm and tube fitting with thread M 12 x 1
    • With commercially available standard tools: 14 Nm
    • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
15. Brake Line, Primary Piston Circuit to Hydraulic Unit
    • Diameter 6 mm and tube fitting with thread M 12 x 1
    • With commercially available standard tools: 14 Nm
    • With special tools Mini Torque Wrench VAS6854, Torque Wrench - Universal Joint VAG 1410/7 and Open Ring Spanner Insert - AF 11mm VAG 1410/6: 12 Nm
16. Brake Booster -NX6-
    • Refer to Overview - Brake Booster/Brake Master Cylinder .
    • Refer to Brake Booster, Removing and Installing .
