Vehicle, Lifting: Notes
CAUTION:
Using the hoist incorrectly can damage the vehicle.
- Do not exceed the permitted load rating of the hoist.
- Only lift the vehicle at the mounting points shown.
- Position the mounting plate so that it is aligned centrally under the mounting points.
- Maintain distance between the low-lying vehicle components and the hoist.
Procedure:
-- Applies for vehicles with an air suspension ("adaptive air suspension"): before lifting activate vehicle lift mode. Refer to VEHICLE LIFT MODE, ACTIVATING .

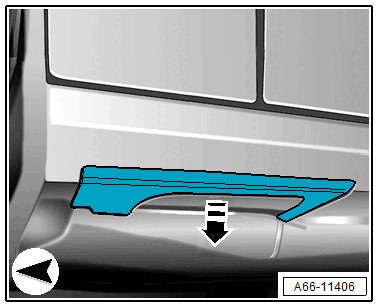

-- Applies to the RS models: pull the sill panel reinforcement cover down in direction of -arrow- and remove.

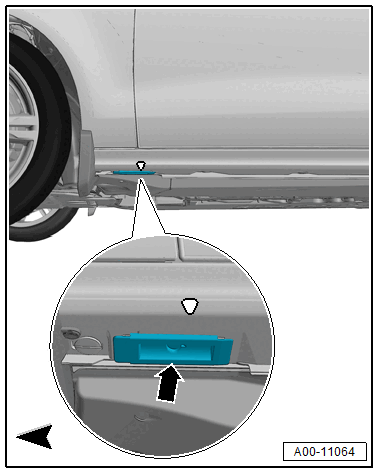

-- Front: place the hoist mounting plate on the raised plastic mounts -arrows- on the bottom of the side sill trim panel.

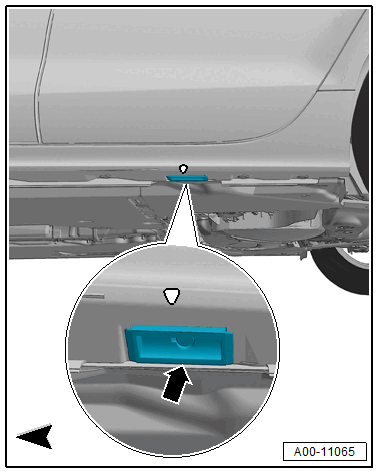

-- Rear: place the hoist mounting plate on the raised plastic mounts -arrows- on the bottom of the side sill trim panel.
NOTE:
The impressions on the side sill trim panel mark the positions of the mounting points.
