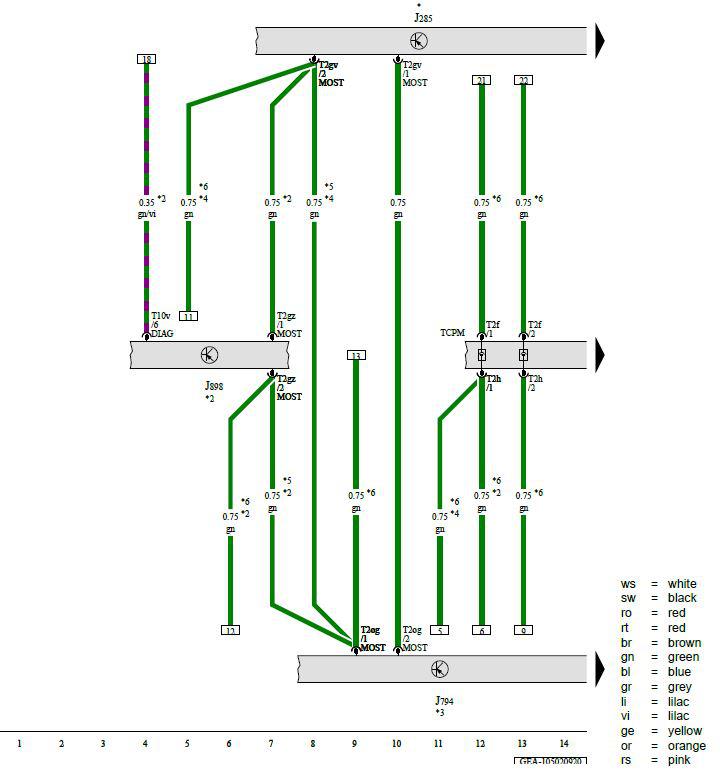

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J794 -  Information Electronics Control Module 1

J898 -  Windshield Projection Head Up Display Control Module

T2f -  2-Pin Connector, Black

T2gv -  2-Pin Connector, Black

T2gz -  2-Pin Connector, Black

T2h -  2-Pin Connector, Black

T2og -  2-Pin Connector, Black

T10v -  10-Pin Connector, Black

TCPM -  Coupling Point on Instrument Panel, Center

* -  Refer to Applicable Wiring Diagram for Instrument Cluster

*2 -  For Vehicles with Windshield Projection

*3 -  Refer to Applicable MMI (Information Electronics) Wiring Diagram

*4 -  For Vehicles Without Windshield Projection

*5 -  For Vehicles Without TV Tuner

*6 -  For Vehicles with TV Tuner
