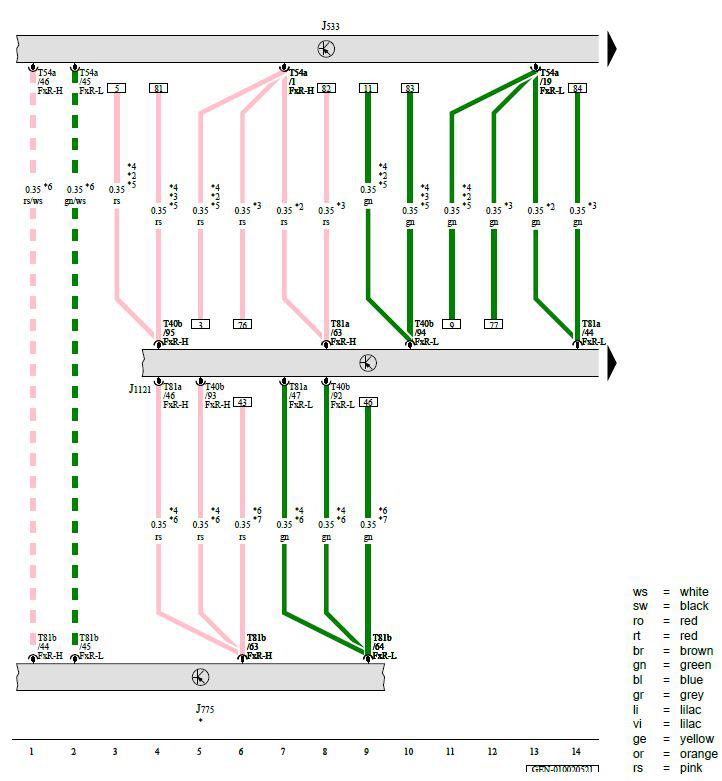

Data Bus on Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Control Module
J533 - Data Bus on Board Diagnostic Interface
J775 - Drivetrain Control Module
J1121 - Driver Assistance Systems Control Module
T40b - 40-Pin Connector, Black
T54a - 54-Pin Connector, Black
T81a - 81-Pin Connector, Black
T81b - 81-Pin Connector, Black
* - Refer to Applicable Wiring Diagram for the Self-Leveling System
*2 - For Vehicles Without Intersection Assistant
*3 - For Vehicles with Intersection Assistant
*4 - Depending on Equipment
*5 - From November 2021
*6 - For Vehicles with Level Control System
*7 - Not for Vehicles with Driver Assistance System
