Overview - Shift Mechanism

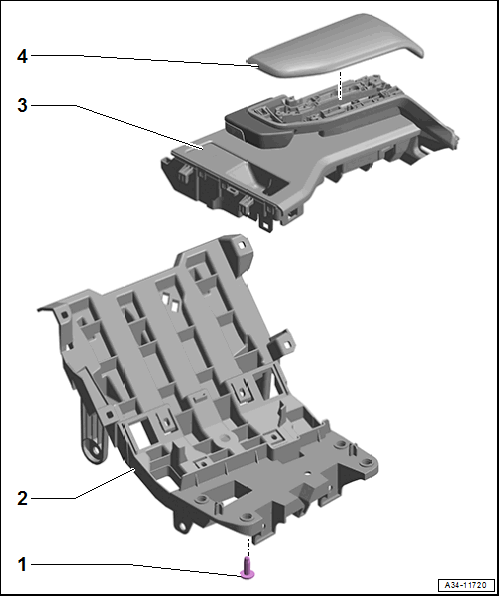

Fig 1: Exploded View Of Shift Mechanism
GWWA34-11720Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 8 Nm
  2. Bracket
  3. Shift Mechanism
  4. Shifter
