4-Cylinder Diesel Engine 2.0L TDI

Removal Procedure:

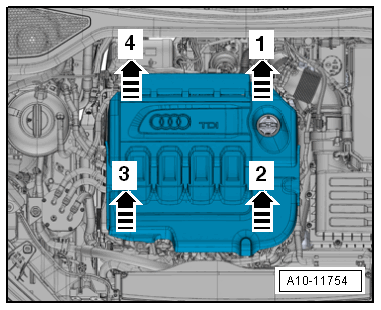

-- Carefully pull the engine cover off the retaining pins one after the other -arrows-.

GWWA10-11754Courtesy of AUDI OF AMERICA, LLC

Installation Procedure:

-- Position the engine cover on the retaining pins and press onto the retaining pins by hand one after the other.
