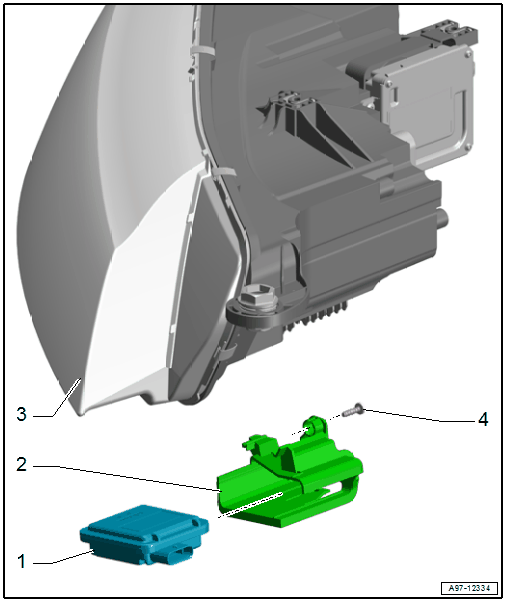

Component Location Overview - Control Modules, Garage Door Opener

Courtesy of AUDI OF AMERICA, LLC

1. Garage Door Opener Control Module -J530-
   • Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
2. Mount
   • For Garage Door Opener Control Module -J530-
   • Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE MOUNT, REMOVING AND INSTALLING .
3. Right Headlamp
4. Screw
   • 1.2 Nm
