Rear Side Window, Installing
- Pay attention to the repair information. Refer to REPAIR INFORMATION .
- Required Tools and Materials for Removal and Installation. Refer to REQUIRED TOOLS AND MATERIALS FOR REMOVAL AND INSTALLATION .
Procedure
-- Prepare the new window glass for installation. Refer to NEW WINDOW GLASS, PREPARING FOR INSTALLATION .
-- Prepare the body flange for installation. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .
- Distance from the window edge to the opening for the window. Refer to OVERVIEW - WINDSHIELD .
- Adhesive bead positioning. Refer to OVERVIEW - WINDSHIELD .

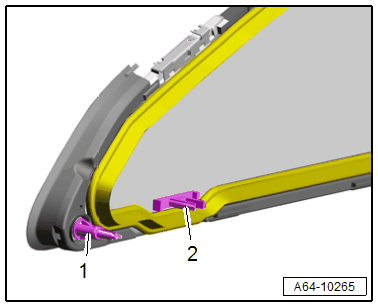

-- Make sure the retainers -1 and 2- are not bent.
-- Push in the new window glass first with the retainers on the C-pillar and then insert completely in the opening for the window.
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
Further installation is the reverse order of removal.
