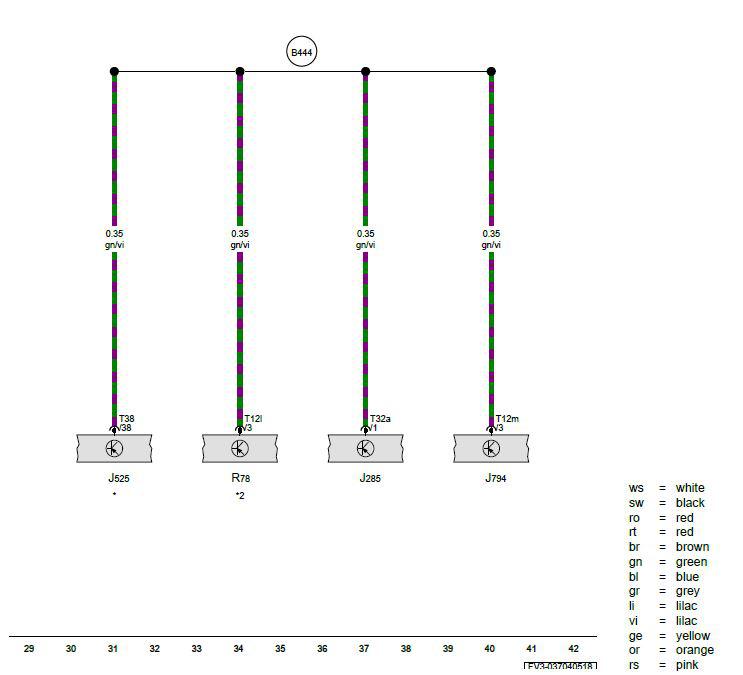

Digital Sound System Control Module, Information Electronics Control Module 1, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J525 -  Digital Sound System Control Module

J794 -  Information Electronics Control Module 1

R78 -  TV Tuner

T12l -  12-Pin Connector

T12m -  12-Pin Connector

T32a -  32-Pin Connector

T38 -  38-Pin Connector

B444 -  OBD Connection 1 (in Main Wiring Harness)

* -  For Vehicles with Bang & Olufsen Sound System

*2 -  For Vehicles with TV Tuner
