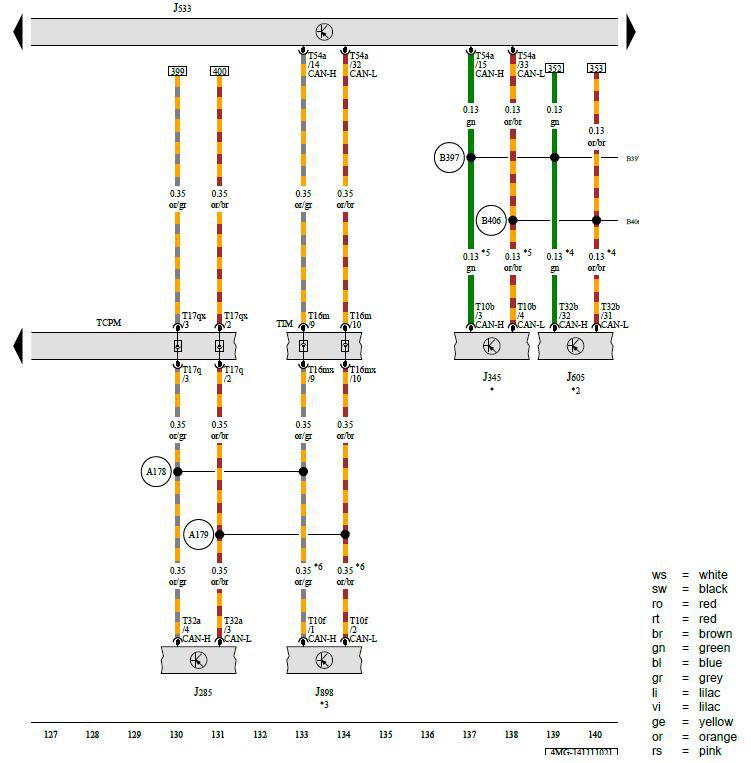

Instrument Cluster Control Module, Towing Recognition Control Module, Data Bus on Board Diagnostic Interface, Rear Lid Control Module, Windshield Projection Head Up Display Control Module
J285 - Instrument Cluster Control Module
J345 - Towing Recognition Control Module
J533 - Data Bus on Board Diagnostic Interface
J605 - Rear Lid Control Module
J898 - Windshield Projection Head Up Display Control Module
T10b - 10-Pin Connector, Black
T10f - 10-Pin Connector, Black
T16m - 16-Pin Connector, Black
T16mx - 16-Pin Connector, Black
T17q - 17-Pin Connector, Black
T17qx - 17-Pin Connector, Black
T32a - 32-Pin Connector, Gray
T32b - 32-Pin Connector, Naturally Cloudy
T54a - 54-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
TIM - Coupling Point in Interior, Center
A178 - Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179 - Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406 - Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
* - Refer to the Wiring Diagram for Trailer Towing
*2 - Refer to Applicable Power Rear Lid Wiring Diagram
*3 - Refer to Applicable Windshield Projection Wiring Diagram
*4 - For Vehicles with Power Rear Lid Opening
*5 - For Vehicles with Trailer Hitch
*6 - For Vehicles with Windshield Projection
