Steering Column, Removing And Installing: Removing

-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Remove the steering column switch module. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .

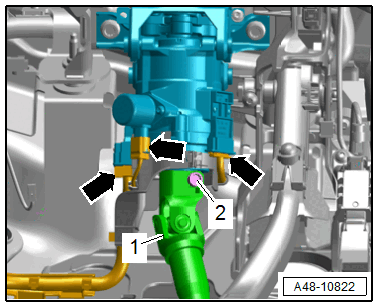

-- Remove the bolt -2- and remove the steering intermediate shaft universal joint -1- from the steering column.

Fig 1: Identifying Bolts & Steering Shaft Universal Joint

Courtesy of AUDI OF AMERICA, LLC

-- Equipment with dynamic steering: disconnect the connectors -arrows- and free up the wires by removing the wire bracket.

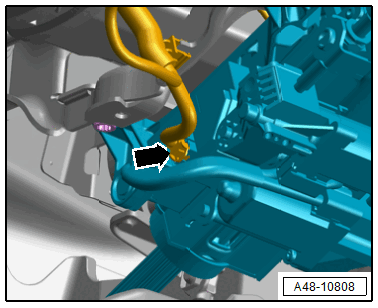

-- Disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts in the sequence -4 to 1- while supporting the steering column -arrow- from below by hand.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the steering column toward the rear and lower slightly.

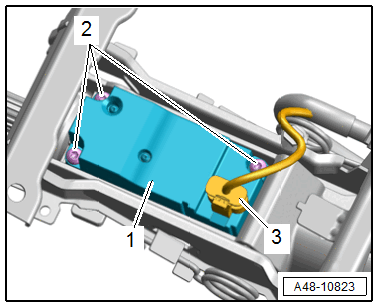

-- If installed, disconnect the connector -3- for the Electronic Steering Column Lock Control Module -J764- -1-, and free up the wire.

Fig 2: Identifying Electronic Steering Column Lock Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the steering column.
