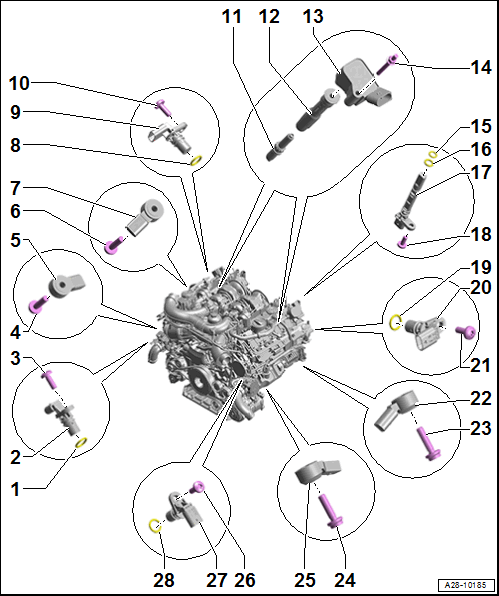

Overview - Ignition System
- O-Ring
- Replace if damaged or leaking
- Camshaft Position Sensor 3 -G300-
- Exhaust side
- Removing and installing. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 23 Nm
- Tightening specifications affect the function of the knock sensor
- Knock Sensor 1 -G61-
- Removing and installing. Refer to Knock Sensor 1 -G61-, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Tightening specifications affect the function of the knock sensor
- Knock Sensor 2 -G66-
- Removing and installing. Refer to Knock Sensor 1 -G61-, REMOVING AND INSTALLING .
- O-Ring
- Replace if damaged or leaking
- Camshaft Position Sensor -G40-
- Intake side
- Removing and installing. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Spark Plug
- Tightening specification. Refer to SPARK PLUGS, REPLACING .
- Replacement interval. Refer to 03 MAINTENANCE, DIAGNOSIS (2019) , 03 MAINTENANCE, DIAGNOSIS (2020) or 03 MAINTENANCE, DIAGNOSIS (2021) .
- Spark Plug Connectors
- Installation position. Refer to IGNITION COILS, REMOVING AND INSTALLING .
- Ignition Coil
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Ignition Coil 5 with Power Output Stage -N323-
- Ignition Coil 6 with Power Output Stage -N324-
- Ignition Coil 7 with Power Output Stage -N325-
- Ignition Coil 8 with Power Output Stage -N326-
- Removing and installing. Refer to IGNITION COILS, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Ring
- Replace if damaged or leaking
- O-Ring
- Replace if damaged or leaking
- Engine Speed Sensor -G28-
- Removing and Installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- After replacing perform the "0001 - mechanical engine, functions" listed adaptation using the Vehicle Diagnostic Tester.
- Bolt
- 9 Nm
- O-Ring
- Replace if damaged or leaking
- Camshaft Position Sensor 2 -G163-
- Intake side
- Removing and installing. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Knock Sensor 4 -G199-
- Removing and installing. Refer to Knock Sensor 1 -G61-, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Tightening specifications affect the function of the knock sensor
- Bolt
- 23 Nm
- Tightening specifications affect the function of the knock sensor
- Knock Sensor 3 -G198-
- Bolt
- 9 Nm
- Camshaft Position Sensor 4 -G301-
- Exhaust side
- Removing and installing. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
- O-Ring
- Replace if damaged or leaking
