Special Tools

Special tools and workshop equipment required

Tensioning Strap :T10038

Fig 1: Identifying Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Engine Support :T10533

Fig 2: Engine Support : T10533
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Basic Set :T40091

Fig 3: Engine Support - Basic Set T40091
Courtesy of AUDI OF AMERICA, LLC
Engine Support Supplement Set :T40093C

Fig 4: Engine Support - Supplement Kit T40093A
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm :T40263

Fig 5: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter :T40314

Fig 6: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm :VAG1332/14

Fig 7: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Bracket :VAS6095A

Fig 8: Identifying Engine and Gearbox Bracket VAS6095A
Courtesy of AUDI OF AMERICA, LLC
Engine/Transmission Holder - Universal Mounting :VAS6095/1 and Engine Bracket V8 TFSI :VAS6095/1-17A

Fig 9: Identifying Universal Mount VAS 6095/1
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set :

Fig 10: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table :VAS6131B

Fig 11: Scissor Lift Table (VAS6131B)
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table - Audi Set :VAS6131/10

Fig 12: Identifying Scissor Lift Table - Audi Set VAS 6131/10
Courtesy of AUDI OF AMERICA, LLC
Shop Crane :VAS6100

Fig 13: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Lift Arm Extension :VAS6101

Fig 14: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI OF AMERICA, LLC
Coolant Collecting System :VAS5014 or Shop Crane - Drip Tray :VAS6208

Fig 15: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers :VAS6340

Fig 16: Hose Clip Pliers VAS6340
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers :VAS6362

Fig 17: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack :VAS6931

Fig 18: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC

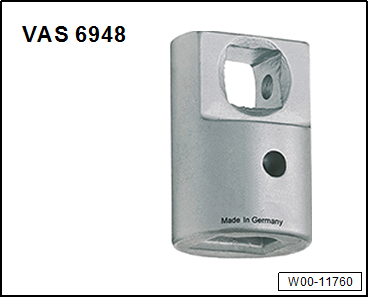

Torque Wrench Adapter :VAS6948

Fig 19: Identifying Torque Wrench Adapter VAS6948
Courtesy of AUDI OF AMERICA, LLC
Ball Joint Splitter :VAS251805

Fig 20: Ball Joint Splitter (kukko 129-3)
Courtesy of AUDI OF AMERICA, LLC
Ball Joint Splitter : VAS251809 with : VAS251809/1
Engine Support Bridge :10-222A

Fig 21: Engine Support Bridge 10-222A
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge - Gearbox Adapter :10-222A/13

Courtesy of AUDI OF AMERICA, LLC
Lifting Tackle :3033

Fig 22: Lifting Tackle (3033)
Courtesy of AUDI OF AMERICA, LLC
Spreader Tool :3424

Courtesy of AUDI OF AMERICA, LLC
Not Illustrated:
Spacer Sleeve :T40330/3 and a long bolt from the Counterholder : T40330
Engine Bracket V8 TFSI :VAS6095/1-17A , not illustrated
Engine Bracket V8 TFSI MLB :VAS6095/1-18B , not illustrated
